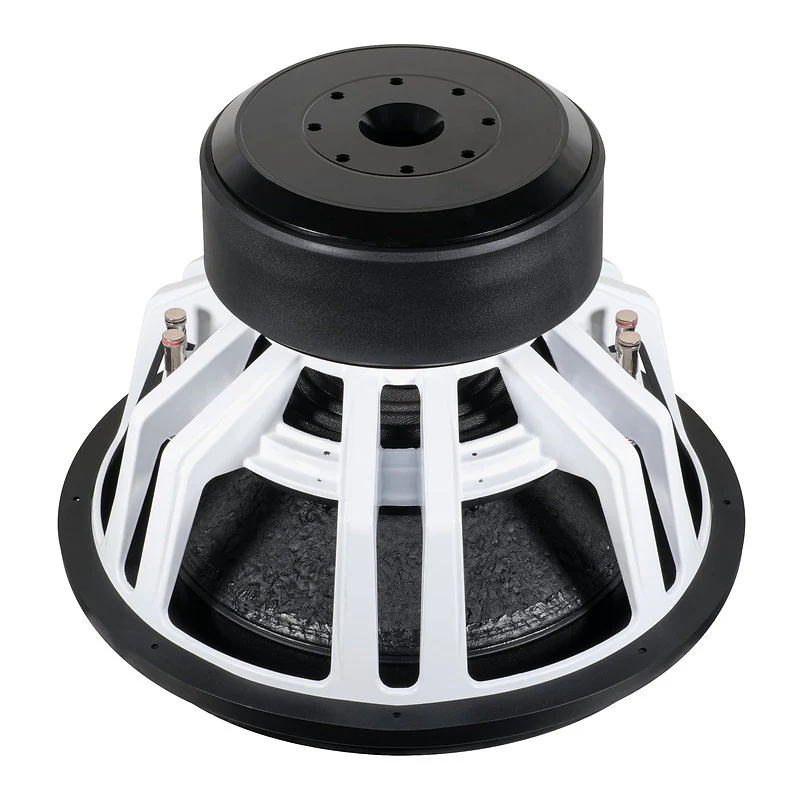

AUDIO ACE REBELLION 18" DUAL 1 OHM SUBWOOFER
Product Overview: Audio Ace's Extreme SQ/SPL Hybrid Subwoofer
The Audio Ace Rebellion 18" D1 is engineered for the highest demands, built with the goal of achieving a perfect balance of high Sound Quality (SQ) and high Sound Pressure Level (SPL). Rated at a phenomenal 4,000W RMS, the Rebellion features a strong 498 oz motor structure and a low Free Air Resonance (Fs) of 28 Hz, allowing it to sound great across a wide range of music. With a 4-inch voice coil and a substantial linear excursion (Xmax) of 25mm each way, this subwoofer is versatile enough for either competition or daily driving at EXTREME sound levels. The Dual 1 Ohm impedance allows for a final parallel load of 0.5 Ohms.

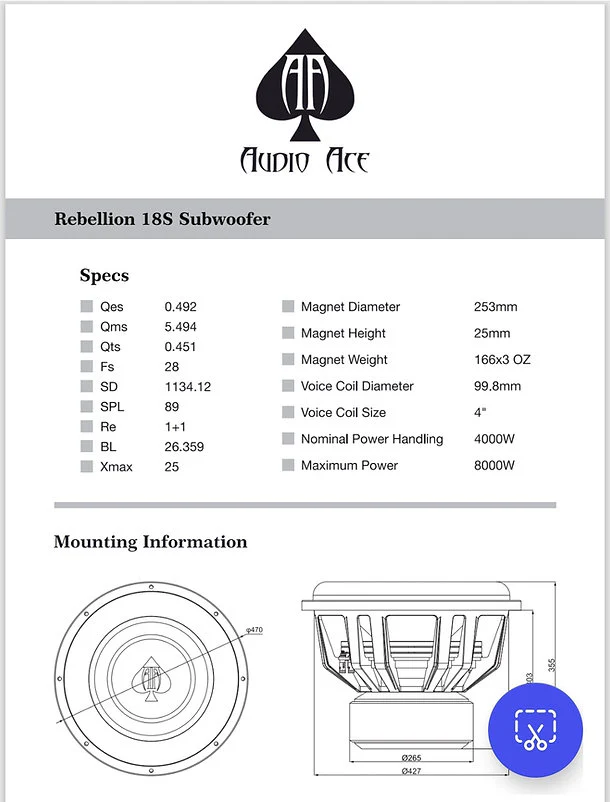

| AUDIO ACE REBELLION 18" DUAL 1 OHM SPECIFICATIONS | |
|---|---|
| Model | Rebellion 18" |
| Nominal Impedance | Dual 1 Ohm (D1) |
| RMS Power Handling | 4,000 Watts |
| Voice Coil | 4 Inch D1 |
| Motor Weight | 498 oz |
| Maximum Excursion (Xmax) | 25mm Each Way |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 89 dB |
| Electrical Q (Qes) | 0.492 |
| Mechanical Q (Qms) | 5.494 |
| Total Q (Qts) | 0.451 |
| Resonance Frequency (Fs) | 28 Hz |
| Effective Piston Area (SD) | 1134.12 |
| DC Resistance (Re) | 1 + 1 Ohms |
| BL Factor (BL) | 26.359 |
Original: $899.00
-65%$899.00
$314.65
Description
Product Overview: Audio Ace's Extreme SQ/SPL Hybrid Subwoofer
The Audio Ace Rebellion 18" D1 is engineered for the highest demands, built with the goal of achieving a perfect balance of high Sound Quality (SQ) and high Sound Pressure Level (SPL). Rated at a phenomenal 4,000W RMS, the Rebellion features a strong 498 oz motor structure and a low Free Air Resonance (Fs) of 28 Hz, allowing it to sound great across a wide range of music. With a 4-inch voice coil and a substantial linear excursion (Xmax) of 25mm each way, this subwoofer is versatile enough for either competition or daily driving at EXTREME sound levels. The Dual 1 Ohm impedance allows for a final parallel load of 0.5 Ohms.
| AUDIO ACE REBELLION 18" DUAL 1 OHM SPECIFICATIONS | |
|---|---|
| Model | Rebellion 18" |
| Nominal Impedance | Dual 1 Ohm (D1) |
| RMS Power Handling | 4,000 Watts |
| Voice Coil | 4 Inch D1 |
| Motor Weight | 498 oz |
| Maximum Excursion (Xmax) | 25mm Each Way |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 89 dB |
| Electrical Q (Qes) | 0.492 |
| Mechanical Q (Qms) | 5.494 |
| Total Q (Qts) | 0.451 |
| Resonance Frequency (Fs) | 28 Hz |
| Effective Piston Area (SD) | 1134.12 |
| DC Resistance (Re) | 1 + 1 Ohms |
| BL Factor (BL) | 26.359 |
