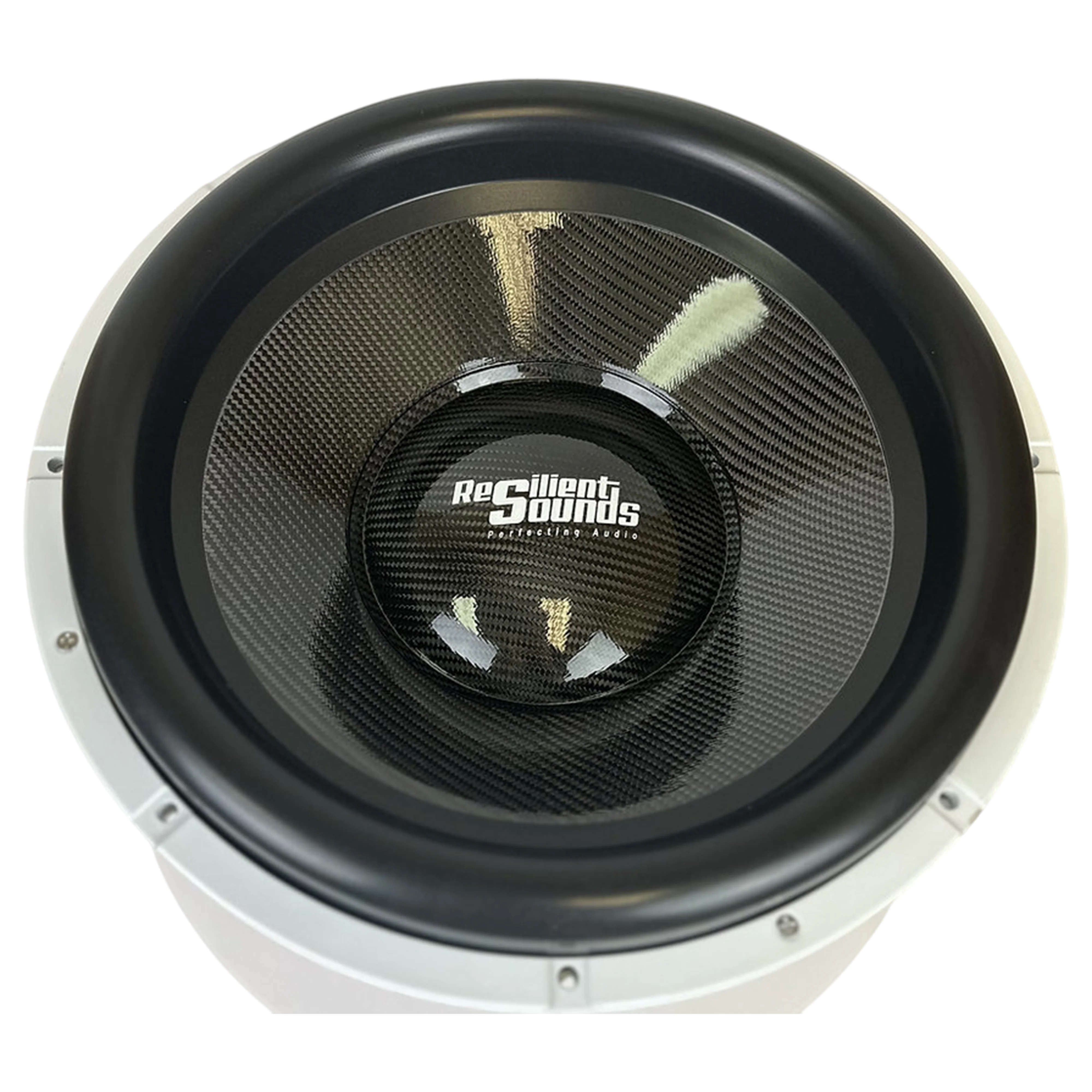

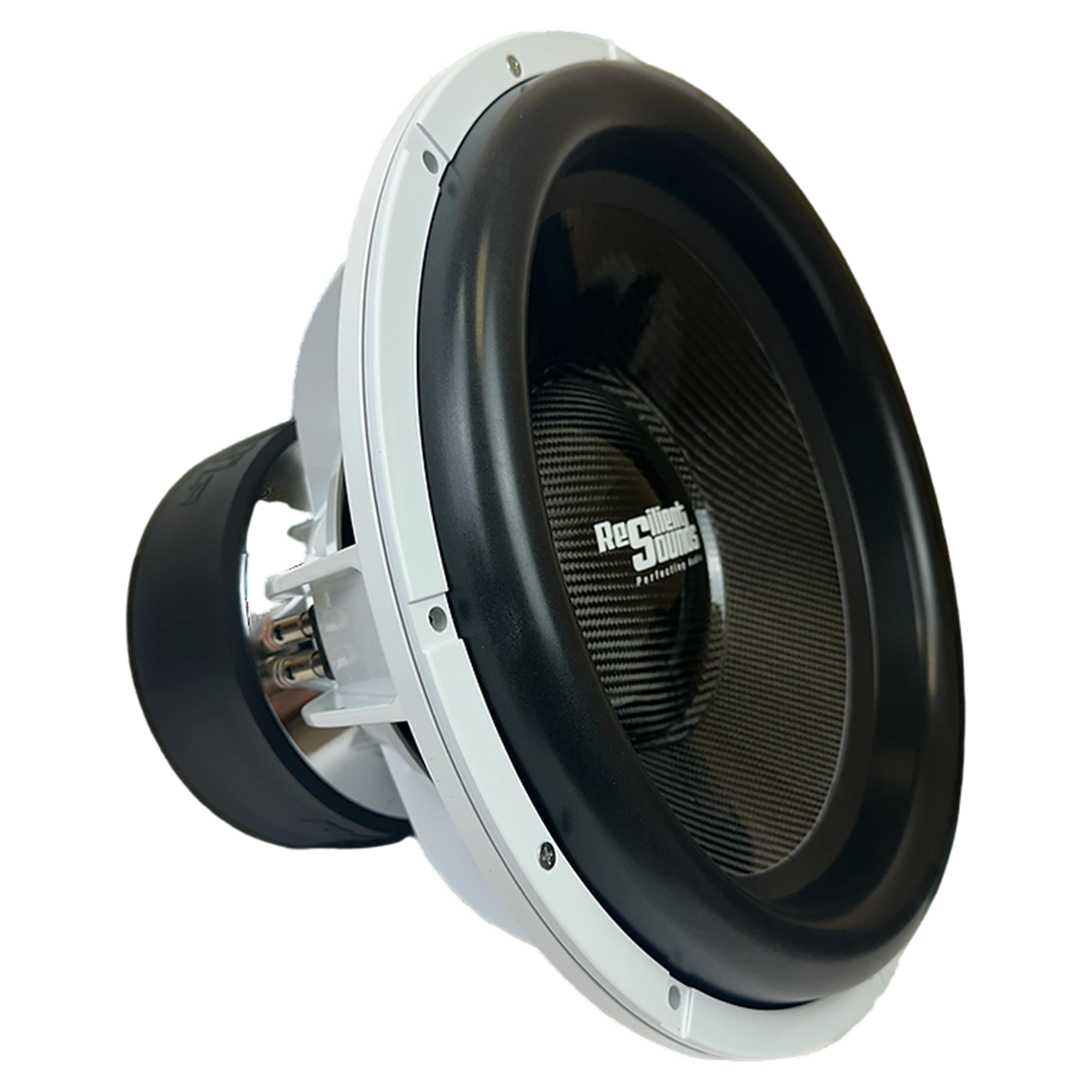

RESILIENT SOUNDS PLATINUM V2 18" DUAL 2 OHM (D2) SUBWOOFER
Unmatched Scale and Sheer Power in an 18-Inch Driver
The Resilient Sounds PLATINUM V2 18" D2 is the ultimate subwoofer for maximum scale and output, combining an extreme 18-inch cone area with top-tier motor technology. Conservatively rated at a crushing 2,500W RMS (5,000 Watts Peak), this driver is built around a 13% larger motor assembly and a 20% longer 3-inch 8-layer voice coil, resulting in a dramatic increase in motor force (up to 50% more BL²/Re than the V1). The Dual 2 Ohm impedance allows for flexible wiring to 1 Ohm or 4 Ohm final loads. With a massive 35mm XMAX, a durable 10-inch spider pack, and a stiff carbon fiber cone, this 18-inch Platinum V2 is engineered for the highest demands of output and clarity.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Platinum 18 V2 |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 2,500 Watts |
| Peak Power Handling | 5,000 Watts |
| Maximum Excursion (XMAX) | 35MM |
| Voice Coil | 3-inch 8 Layer (20% Longer than V1) |

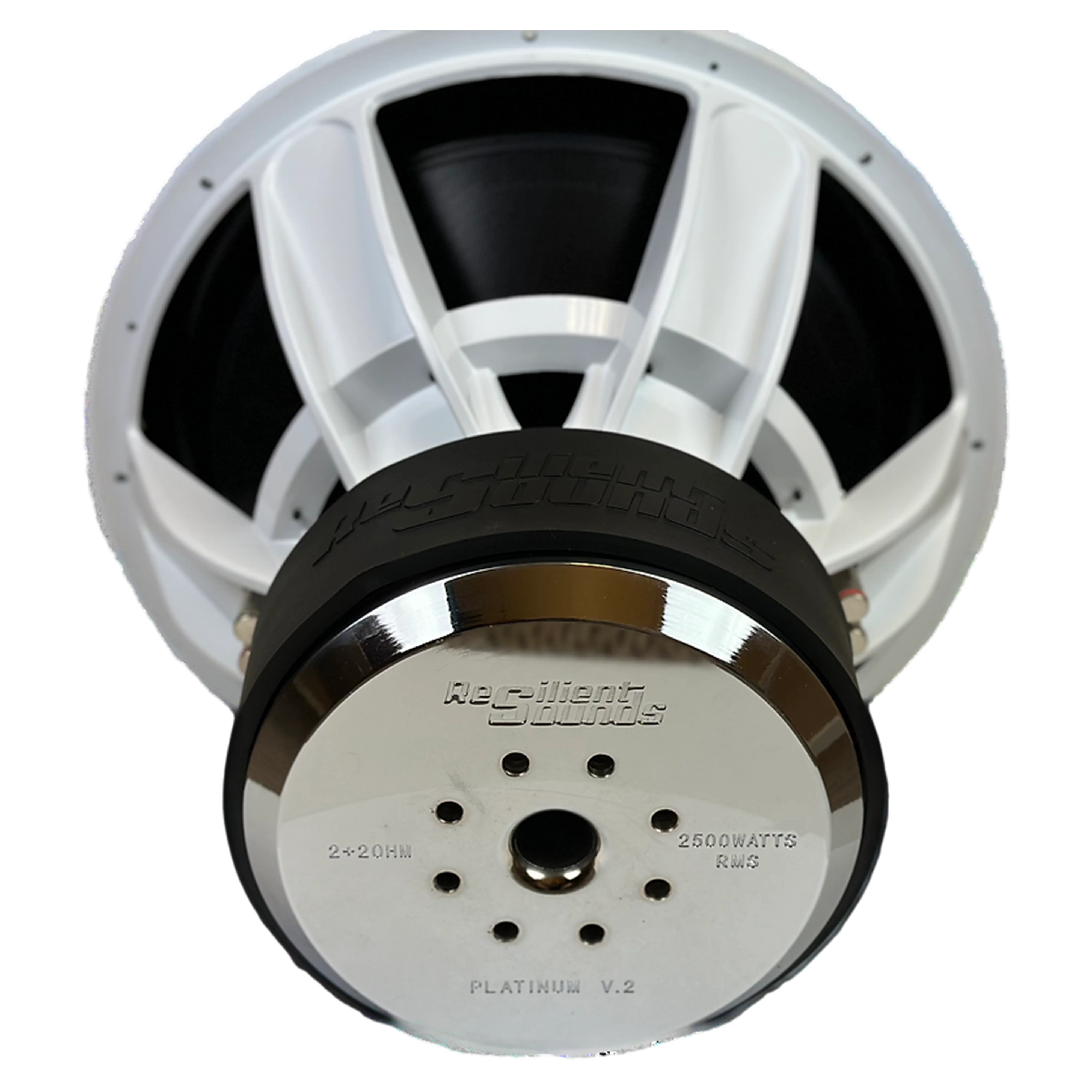

| Motor Structure | 13% Larger Motor, XL Triple Stacked |

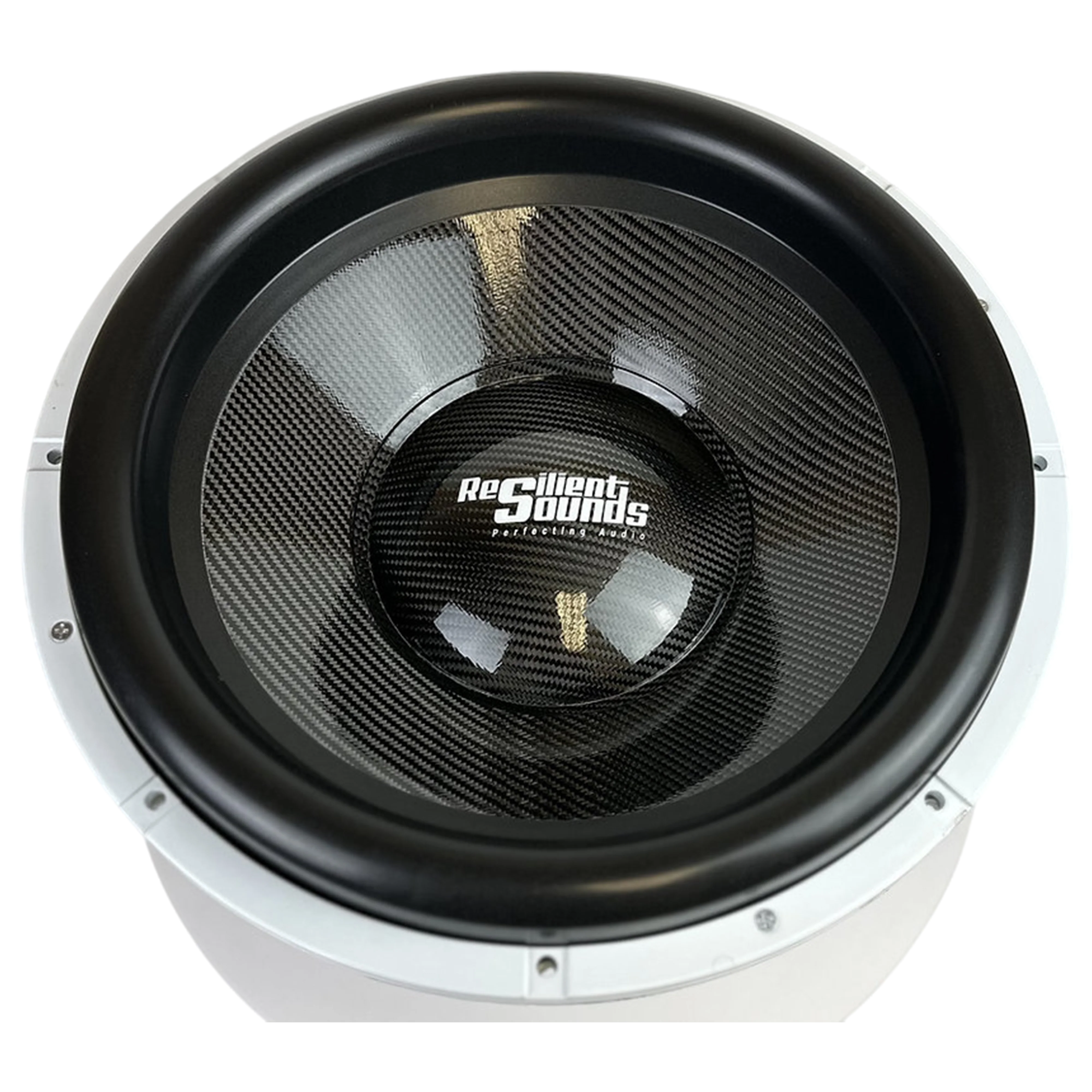

| Cone / Dust Cap | Carbon Fiber |
| Surround | New High Roll Tooled Surround |

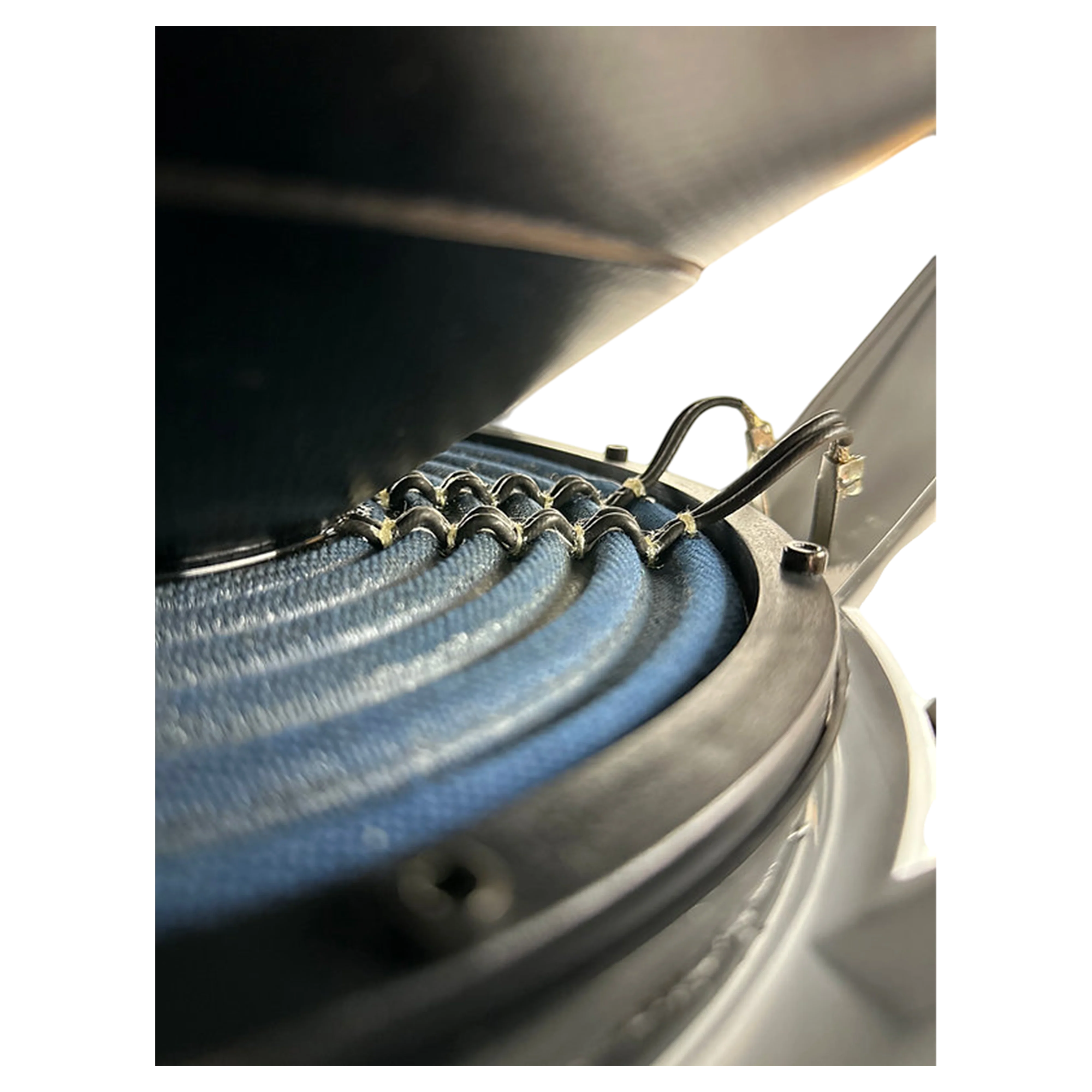

| Spider / Leads | 10" Spider Pack with Insulated Dual Leads |

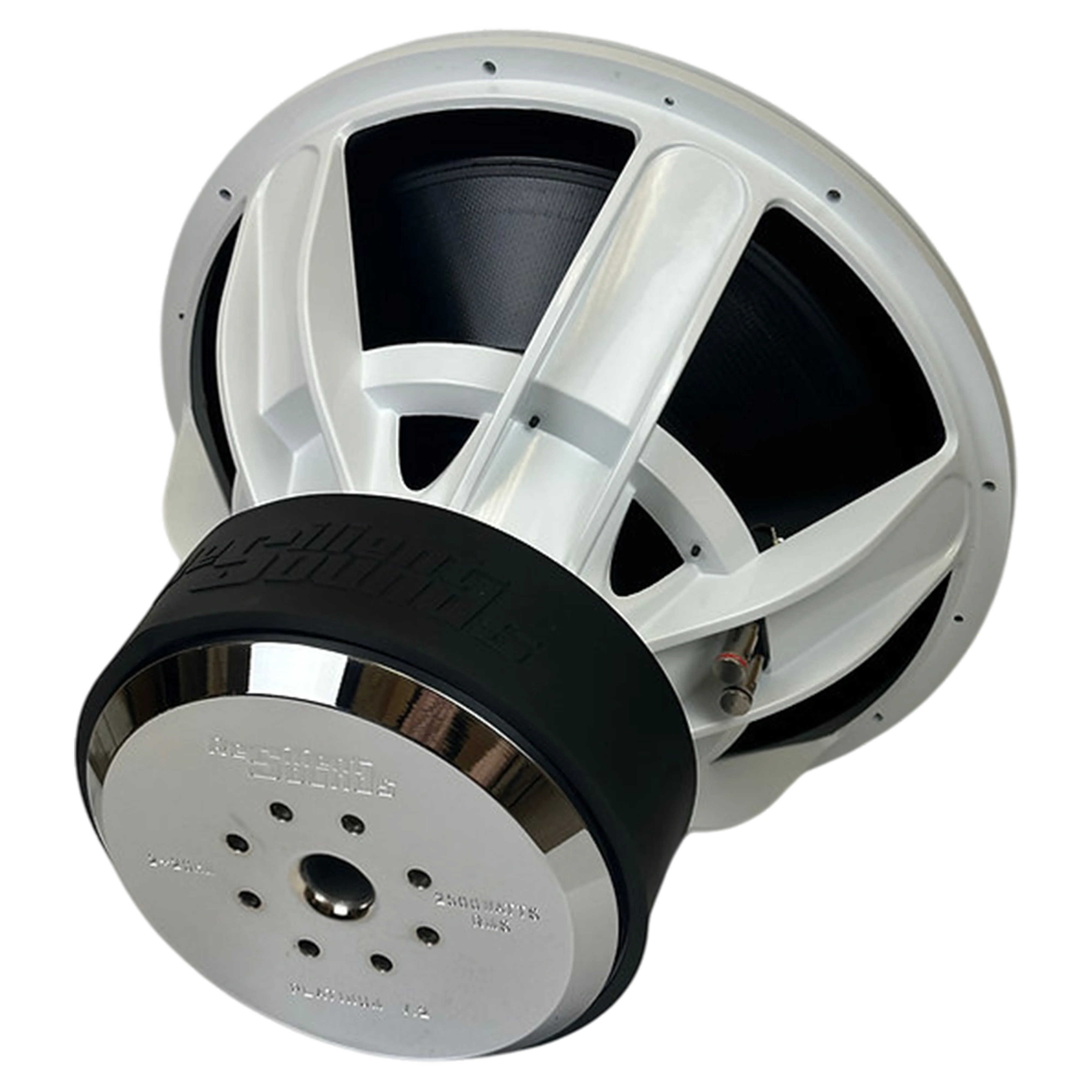

| Frame/Basket | Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 4 - 6 CU FT |
| Tuning Frequency | 28 - 33 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 12.5 INCHES |
| Cutout Diameter | 16.93 INCHES |
| Displacement | 0.33 CUBIC FT |
Description
Unmatched Scale and Sheer Power in an 18-Inch Driver
The Resilient Sounds PLATINUM V2 18" D2 is the ultimate subwoofer for maximum scale and output, combining an extreme 18-inch cone area with top-tier motor technology. Conservatively rated at a crushing 2,500W RMS (5,000 Watts Peak), this driver is built around a 13% larger motor assembly and a 20% longer 3-inch 8-layer voice coil, resulting in a dramatic increase in motor force (up to 50% more BL²/Re than the V1). The Dual 2 Ohm impedance allows for flexible wiring to 1 Ohm or 4 Ohm final loads. With a massive 35mm XMAX, a durable 10-inch spider pack, and a stiff carbon fiber cone, this 18-inch Platinum V2 is engineered for the highest demands of output and clarity.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Platinum 18 V2 |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 2,500 Watts |
| Peak Power Handling | 5,000 Watts |
| Maximum Excursion (XMAX) | 35MM |
| Voice Coil | 3-inch 8 Layer (20% Longer than V1) |
| Motor Structure | 13% Larger Motor, XL Triple Stacked |
| Cone / Dust Cap | Carbon Fiber |
| Surround | New High Roll Tooled Surround |
| Spider / Leads | 10" Spider Pack with Insulated Dual Leads |
| Frame/Basket | Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 4 - 6 CU FT |
| Tuning Frequency | 28 - 33 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 12.5 INCHES |
| Cutout Diameter | 16.93 INCHES |
| Displacement | 0.33 CUBIC FT |
