SA-Series v.2 12" Subwoofer
- 1250 Watts RMS / 2500 Watts Peak
- Dual 2 or 4 ohm voice coils
- Vented magnetic gap & pole piece
- Aluminum 2.75” voice coil former for superior heat dissipation
-
Innovative high velocity, cast aluminum vented frame spacer ring
- Magnet ID faraday ring for smooth acoustic response
- High-temperature copper voice coil wire

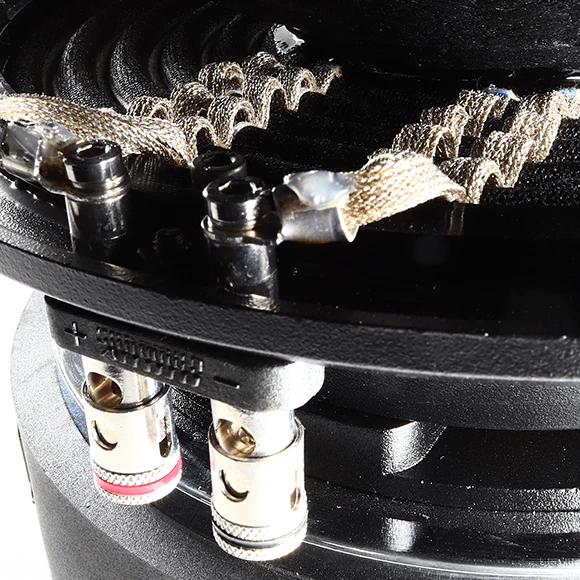

- Spring-loaded terminals
-
Stitched-on double “XL” tinsel leads
This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level.
The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless."
The 18" model features a larger diameter motor to drive the higher mass.
Select Impedance
From $143.50
Original: $409.99
-65%SA-Series v.2 12" Subwoofer—
$409.99
$143.50
Description
- 1250 Watts RMS / 2500 Watts Peak
- Dual 2 or 4 ohm voice coils
- Vented magnetic gap & pole piece
- Aluminum 2.75” voice coil former for superior heat dissipation
-
Innovative high velocity, cast aluminum vented frame spacer ring
- Magnet ID faraday ring for smooth acoustic response
- High-temperature copper voice coil wire
- Spring-loaded terminals
-
Stitched-on double “XL” tinsel leads
This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level.
The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless."
The 18" model features a larger diameter motor to drive the higher mass.
