STETSOM BRAVO BASS 8K Mono 1-Channel Class D - 8000 Watts DIGITAL SUBWOOFER AMPLIFIER
Unrivaled Power for Competition Bass
The Stetsom BRAVO BASS 8K is the definitive choice for the extreme automotive sound enthusiast, developed for unrivaled performance in BASS and SUB BASS applications. This Class D Mono Amplifier outputs an earth-shattering 8200 Watts RMS at 1 Ohm (14.4V), providing the massive energy required to drive the most demanding subwoofer setups.
Engineered for precision and impact, its optimized frequency response spans from 5Hz to 600Hz (Flat ON), ensuring powerful, clean bass that sets a new standard for low-frequency definition. The BRAVO BASS 8K includes a complete suite of professional audio controls, including variable Low Pass and Subsonic Filters, plus a versatile Bass Boost, giving you the ability to fine-tune your system for competition, daily driving, or simply maximum SPL. Despite its colossal power, it maintains a high Signal-to-Noise Ratio (> 90dB) and features a robust Smart Protection System for reliable, high-performance operation.
Advanced Control & Competition Features
-
Customizable Bass Impact: The BASS BOOST function offers variable gain from 0dB to +10dB at a selectable frequency between 30Hz and 70Hz to maximize low-end punch.
-
Precision Filtering: Utilize the Low Pass Filter (30Hz ~ 250Hz) and the critical Subsonic Filter (5Hz ~ 40Hz) to protect your subwoofers and prevent reproduction of damaging frequencies.
-
FLAT Mode Switch: Quickly bypass all Crossover and BASS BOOST settings for full-range (up to 600Hz) signal reproduction when desired.
-
Reliability & Protection: Equipped with multiple COOLERs for efficient heat management and a Smart Protection System that monitors for faults like short circuits, overheating, and voltage fluctuations (indicated by the PROT LED).
-

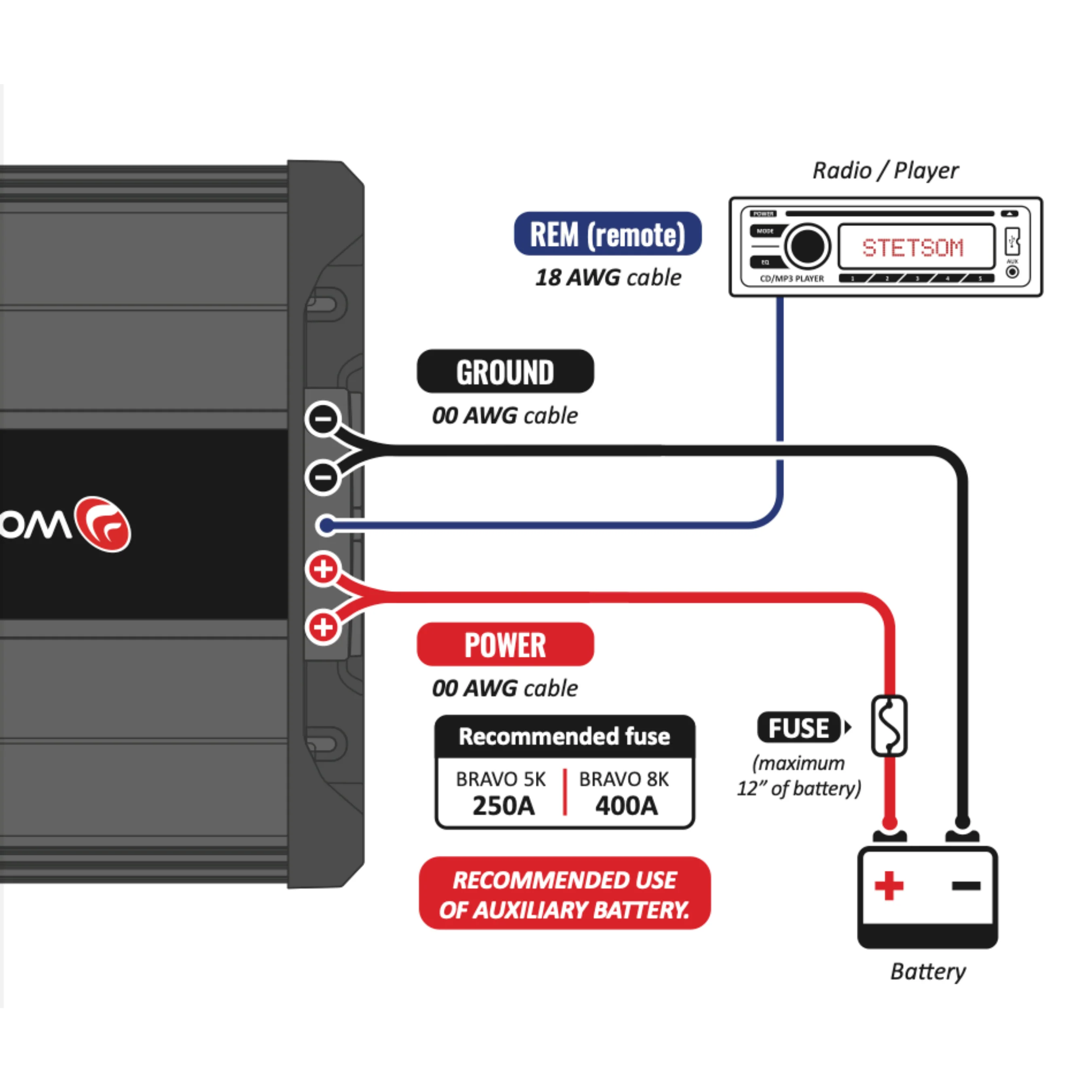

Wiring Recommendation: Due to the extreme power consumption, the use of 00 AWG or larger cables for power and ground connections is strongly recommended for optimal performance and safety.
TECHNICAL SPECIFICATIONS
| CHARACTERISTIC | Detail |
| Number of Channels | 1 |
| RMS Power @ 1 Ohm (14.4V) | 8200W |
| RMS Power @ 2 Ohm (14.4V) | 4900W |
| Supply Voltage | 9V ~ 17V DC |

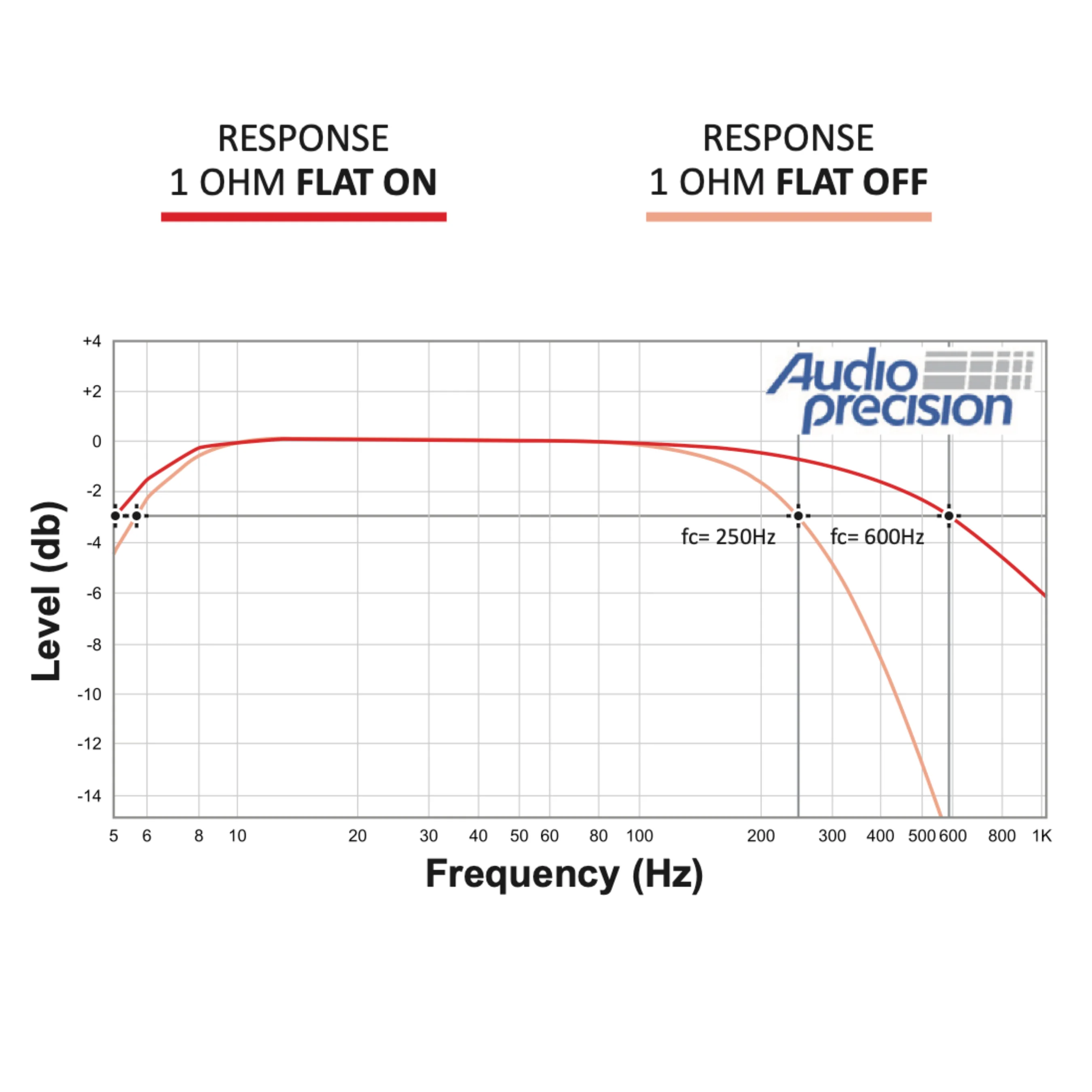

| Frequency Response (-3dB) FLAT ON | 5Hz ~ 600Hz |
| Frequency Response (-3dB) FLAT OFF | 5Hz ~ 250Hz |
| Crossover Low Pass (LPF) | 30Hz ~ 250Hz (Variable) |
| Crossover Subsonic Filter | 5Hz ~ 40Hz (Variable) |
| Bass Boost | $0\text{dB} \sim +10\text{dB}$ (30Hz ~ 70Hz) |
| Signal to Noise | >90 dB |
| Input Impedance | 4.8K Ohms |
| Musical Consumption | 365A |
| BASS Consumption | 730A |
| Dimensions (H x W x L) | 3.14" x 9.11" x 16.49" |
| Weight | 13.22 lbs |
