Stetsom BRAVO BASS 5K Mono 1 Channel Class D Digital Subwoofer Amplifier
Massive Power & Precision Bass

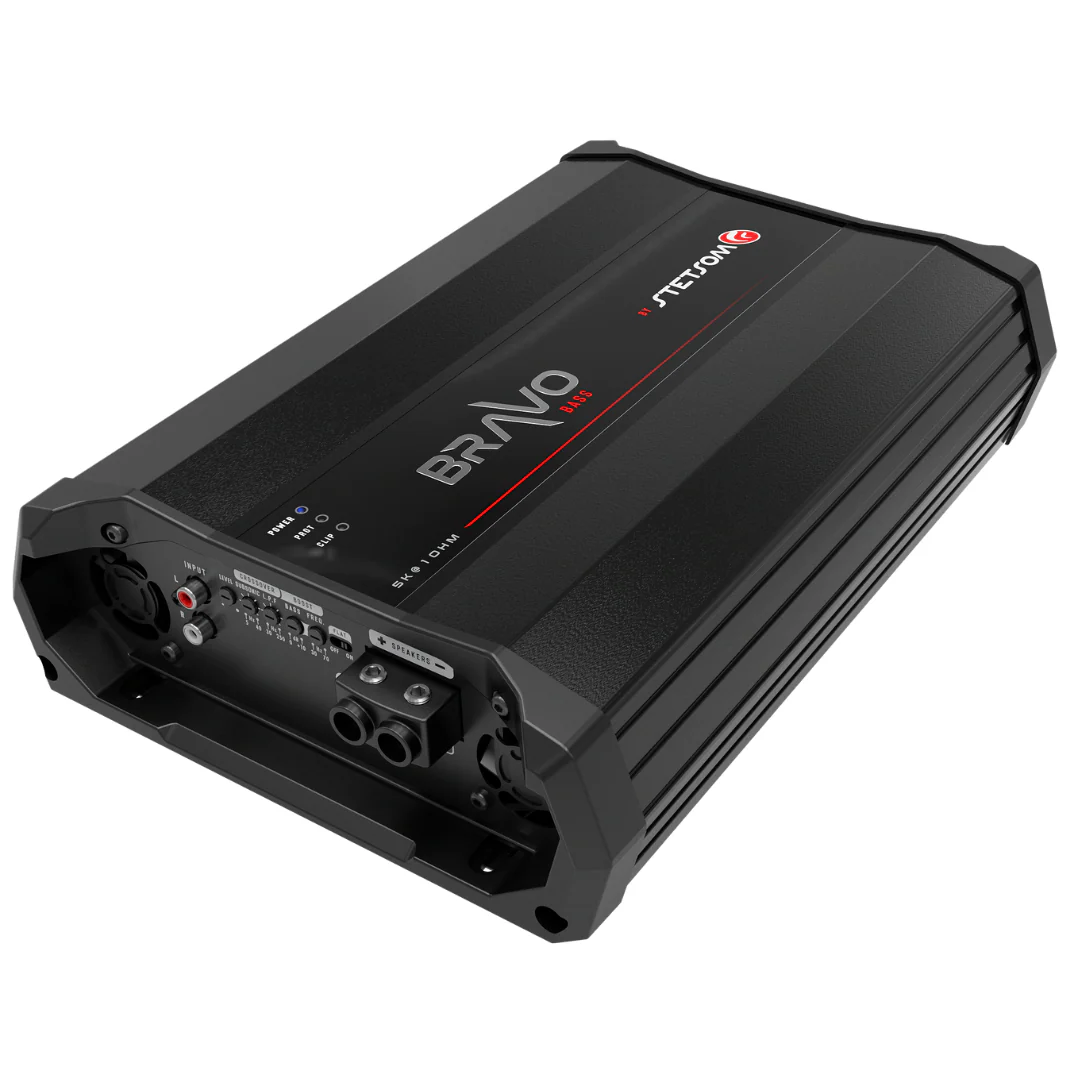

The Stetsom BRAVO BASS 5K is engineered specifically for automotive sound enthusiasts who demand maximum performance in BASS and SUB BASS. This Class D Mono Amplifier delivers a staggering 5200 Watts RMS at $1 \text{ Ohm}$ $(14.4\text{V})$, ensuring your subwoofers hit those deep, thunderous lows with unmatched power and clarity.
With an optimized frequency response of $5\text{Hz}$ to $600\text{Hz}$ (when FLAT mode is ON), this amp provides powerful bass with exceptional definition. It offers advanced control features including a fully adjustable Low Pass Crossover, a precision Subsonic Filter, and a customizable Bass Boost to fine-tune your sound to competition standards. The amp also features a Smart Protection System and dedicated COOLERs to maintain optimal temperature and reliability under intense use.
Advanced Control & Reliability Features
-

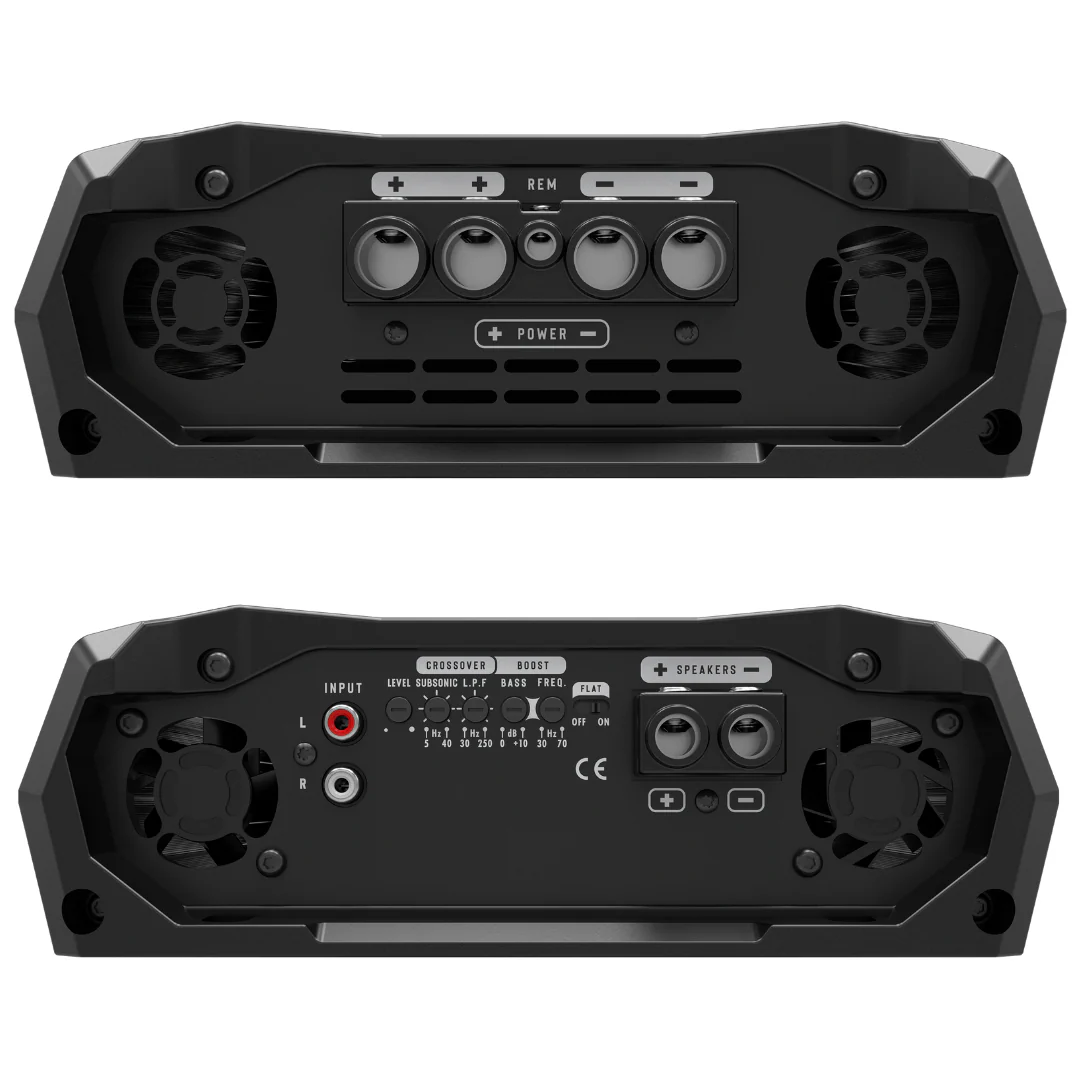

Bass Boost Control: Variable control for increasing bass from 0dB to +10dB, with frequency selection from 30Hz to 70Hz.
-
Subsonic Filter: Variable control to protect your subwoofers by precisely setting the initial frequency (from 5Hz to 40Hz) that the amplifier will reproduce.
-
FLAT Switch: Allows you to quickly bypass all settings on the CROSSOVER and BASS BOOST controls for maximum frequency reproduction (up to 600Hz).
-
Cooling System: Equipped with internal COOLERs for efficient amplifier cooling.
-
Smart Protection System (PROT LED): Features a protection system that monitors for issues like overheating, short circuits, and low battery voltage, shutting down the amplifier to prevent damage.
-

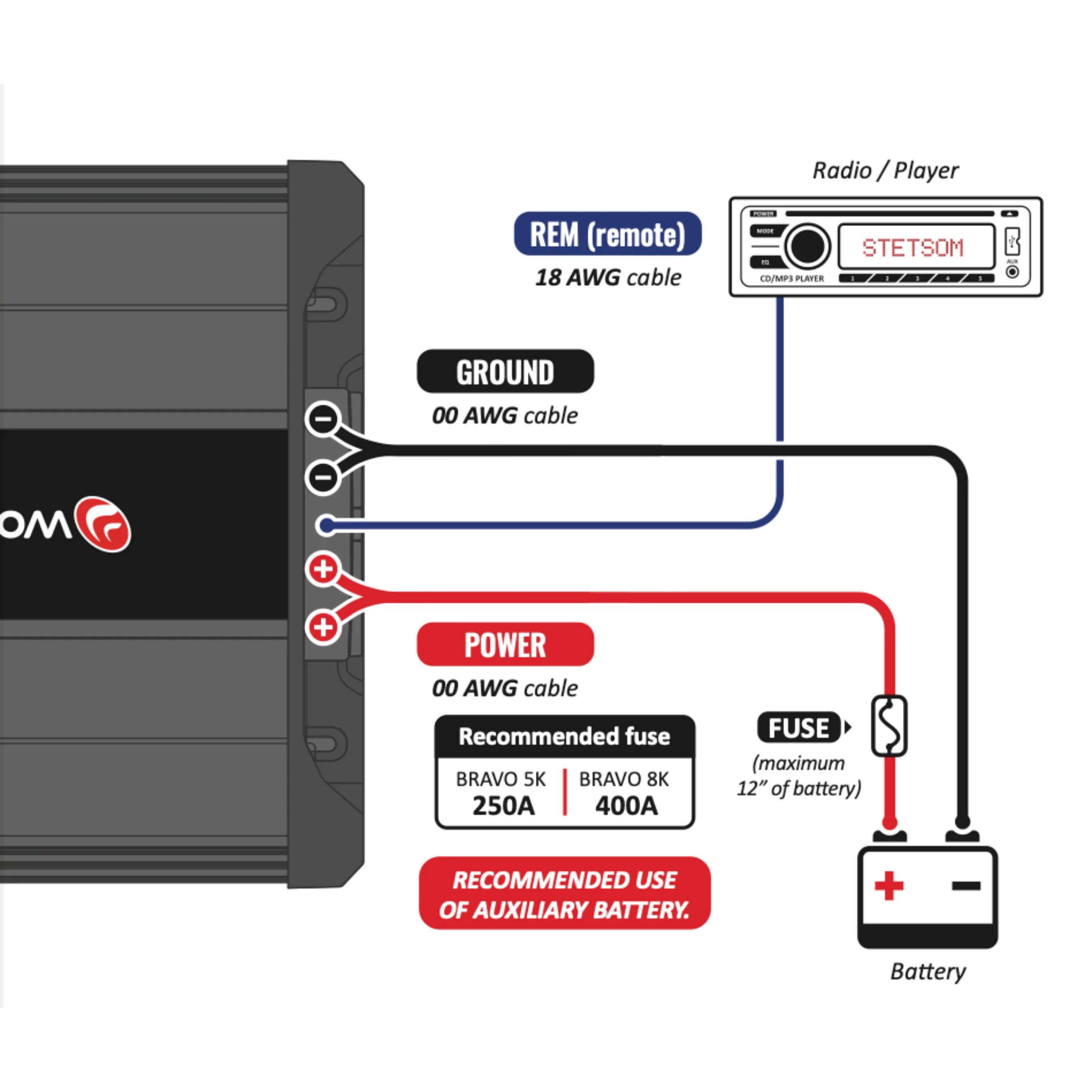

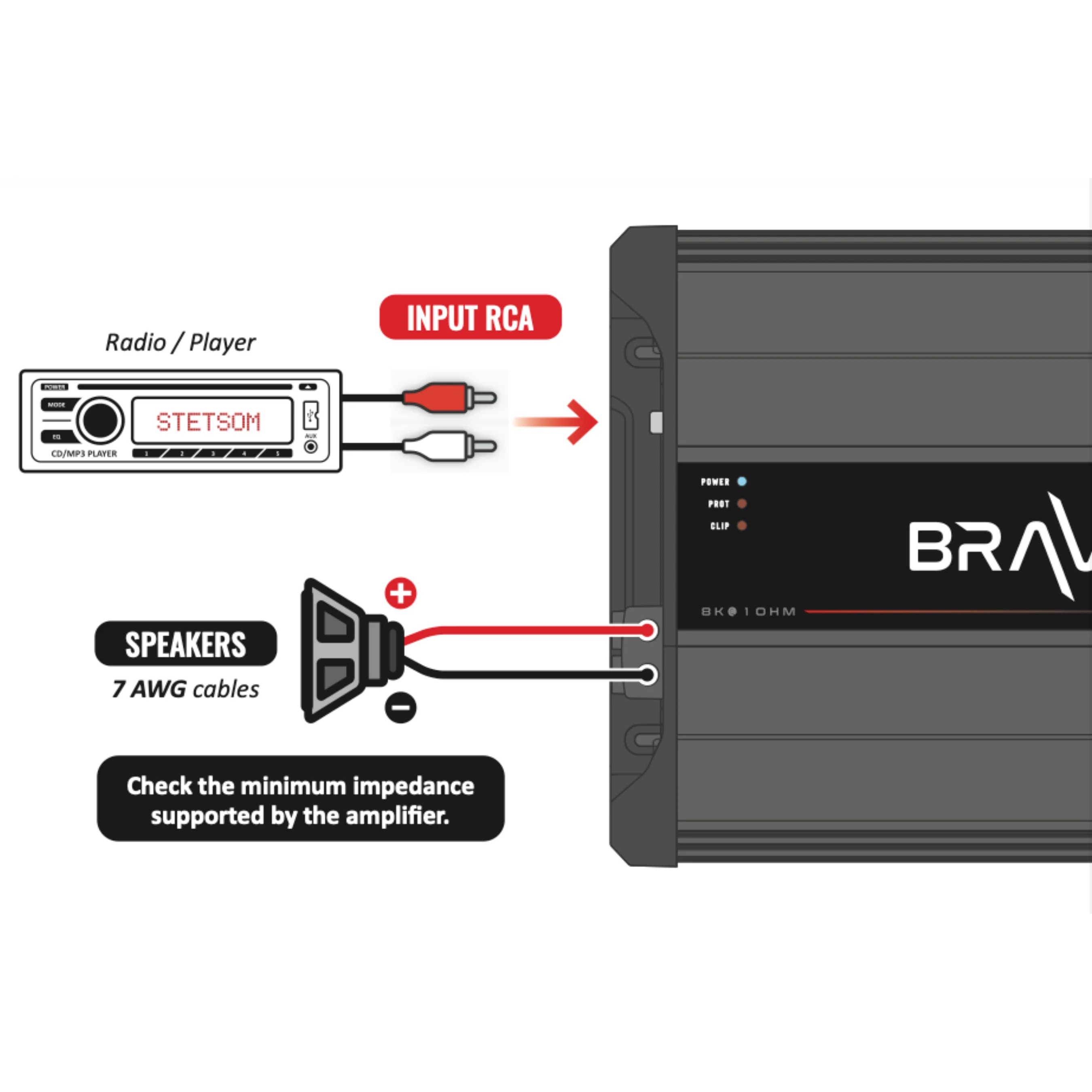

Recommended Wiring: For maximum power and safety, the manual recommends 00 AWG cable for positive/negative power connections and 7 AWG for speaker output.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Number of Channels | 1 |
| RMS Power @ 1 Ohm (14.4V) | 5200W |
| RMS Power @ 2 Ohm (14.4V) | 2900W |
| Supply Voltage | 9V ~ 17V DC |

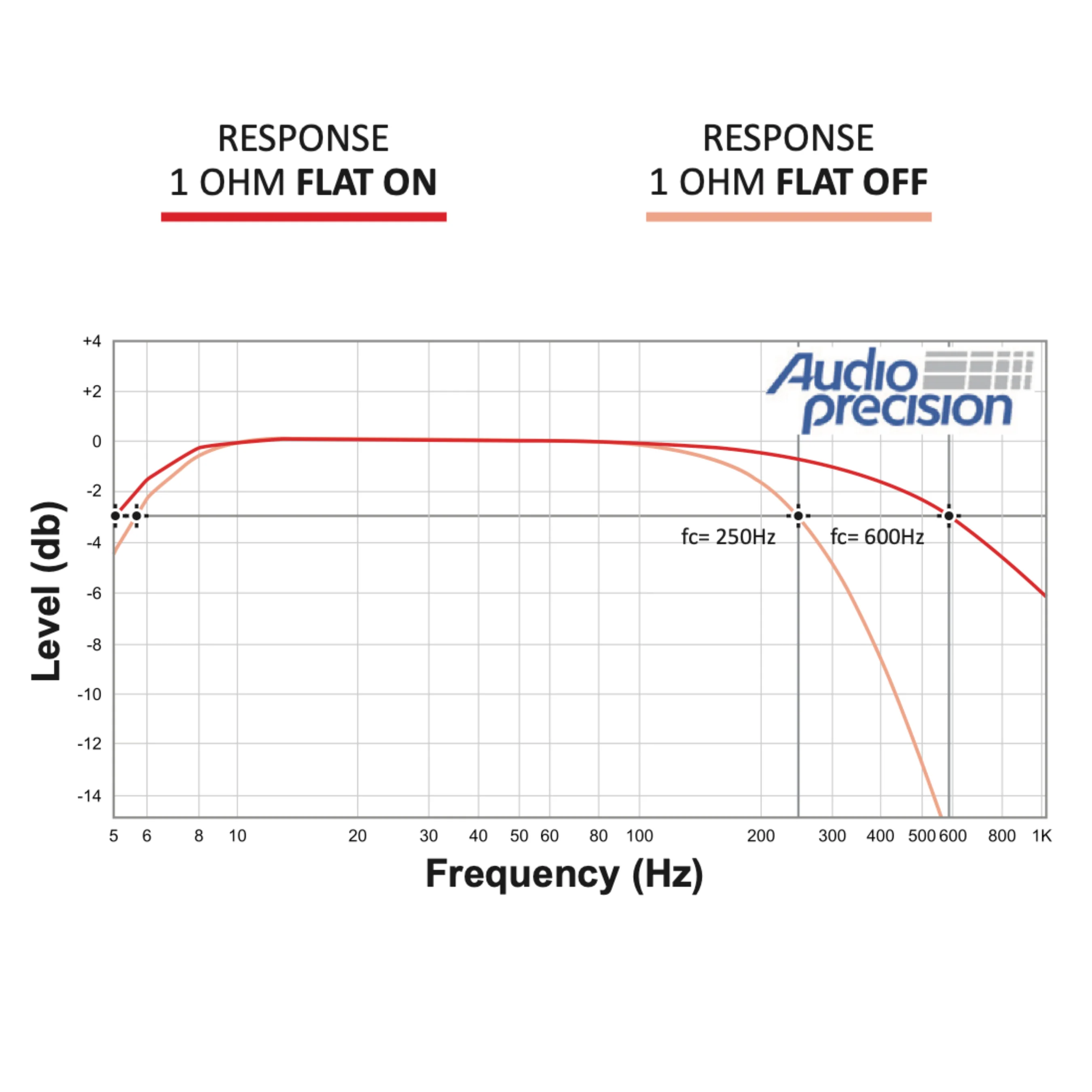

| Frequency Response (-3dB) FLAT ON | 5Hz ~ 600Hz |
| Frequency Response (-3dB) FLAT OFF | 5Hz ~ 250Hz |
| Crossover Low Pass (LPF) | 30Hz ~ 250Hz (Variable) |
| Crossover Subsonic Filter | 5Hz ~ 40Hz (Variable) |
| Bass Boost | 0 ~ +10dB (30Hz ~ 70Hz) |
| Signal to Noise | >90 dB |
| Input Impedance | 4.8K Ohms |
| Musical Consumption | 228A |
| BASS Consumption | 456A |
| Dimensions (H x W x L) | 3.14" x 9.11" x 13.11" |
| Weight | 9.50 lbs |
