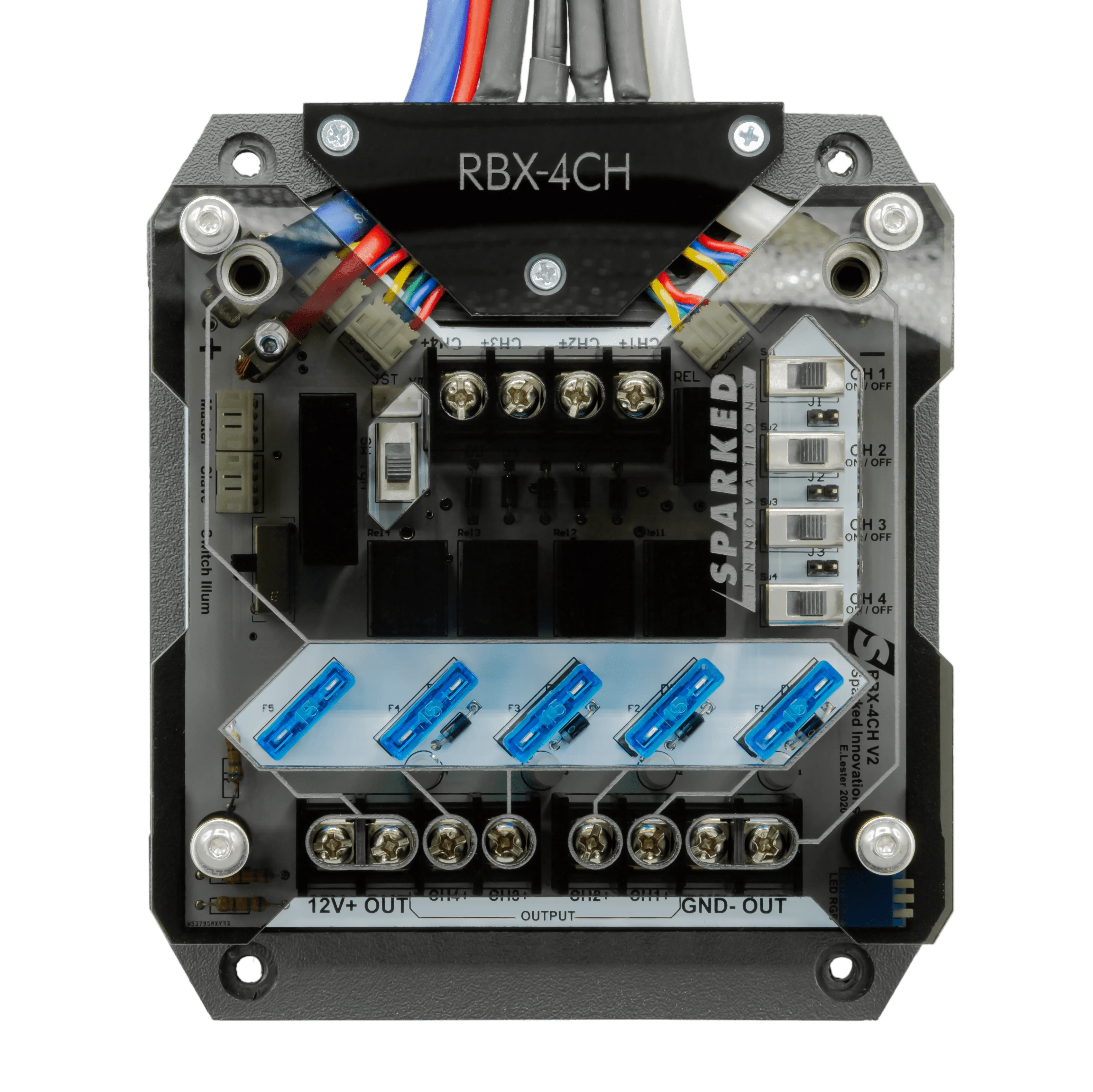

Sparked Innovations RBX-4CH 12VDC 4-Channel Relay Box
Self-contained four-channel 12VDC relay box
| Brand | Sparked Innovations |
|---|---|
| 12VDC voltage range | 9~18VDC |
| Dimensions | 1.20"H, 5.20"W, 6.00"L |
| Remote Input | Positive (+) |
| Switched Channels | 4 |
| Non-Switched Channels | 1 |
| Total Peak Current Capacity | 90A |
| Total Continuous Current Capacity | 75A |
| Current Capacity Per Channel | 15A |
| Fuses | 5 x 15A ATC |
| Power Wire Input Gauge | 4~10 AWG |
| Remote Input Terminals | 10~22 AWG Fork Terminals or Bare Wire |
| Output Terminals | 10~22 AWG Fork Terminals or Bare Wire |
| Weight | 12.2 oz |
| Manufacturer | Sparked Innovations, LLC |
$49.00
Original: $139.99
-65%Sparked Innovations RBX-4CH 12VDC 4-Channel Relay Box—
$139.99
$49.00
Description
Self-contained four-channel 12VDC relay box
| Brand | Sparked Innovations |
|---|---|
| 12VDC voltage range | 9~18VDC |
| Dimensions | 1.20"H, 5.20"W, 6.00"L |
| Remote Input | Positive (+) |
| Switched Channels | 4 |
| Non-Switched Channels | 1 |
| Total Peak Current Capacity | 90A |
| Total Continuous Current Capacity | 75A |
| Current Capacity Per Channel | 15A |
| Fuses | 5 x 15A ATC |
| Power Wire Input Gauge | 4~10 AWG |
| Remote Input Terminals | 10~22 AWG Fork Terminals or Bare Wire |
| Output Terminals | 10~22 AWG Fork Terminals or Bare Wire |
| Weight | 12.2 oz |
| Manufacturer | Sparked Innovations, LLC |
