RESILIENT SOUNDS PLATINUM V2 12" DUAL 1 OHM (D1) SUBWOOFER
Competition-Ready Low-Impedance Powerhouse
The Resilient Sounds PLATINUM V2 12" D1 is purpose-built for competition and extreme daily driving, where maximizing amplifier output with a low impedance load is essential. This 12-inch subwoofer maintains a conservative 2,500W RMS power rating and features a 13% larger motor with a 3-inch 8-layer voice coil that is 20% longer than its predecessor, delivering incredible motor force and thermal capacity. The Dual 1 Ohm impedance is the ultimate configuration for achieving an ultra-low 0.5 Ohm final load when wired in parallel, catering to the most powerful, low-impedance stable amplifiers on the market. Its 35mm XMAX and carbon fiber cone ensure both power and fidelity are maximized.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Platinum 12 V2 |
| Nominal Impedance | Dual 1 Ohm (D1) |
| RMS Power Handling (Conservative) | 2,500 Watts |
| Peak Power Handling | 5,000 Watts |
| Maximum Excursion (XMAX) | 35MM |
| Voice Coil | 3-inch 8 Layer (20% Longer than V1) |
| Motor Structure | 13% Larger Motor, XL Triple Stacked |
| Cone / Dust Cap | Carbon Fiber |

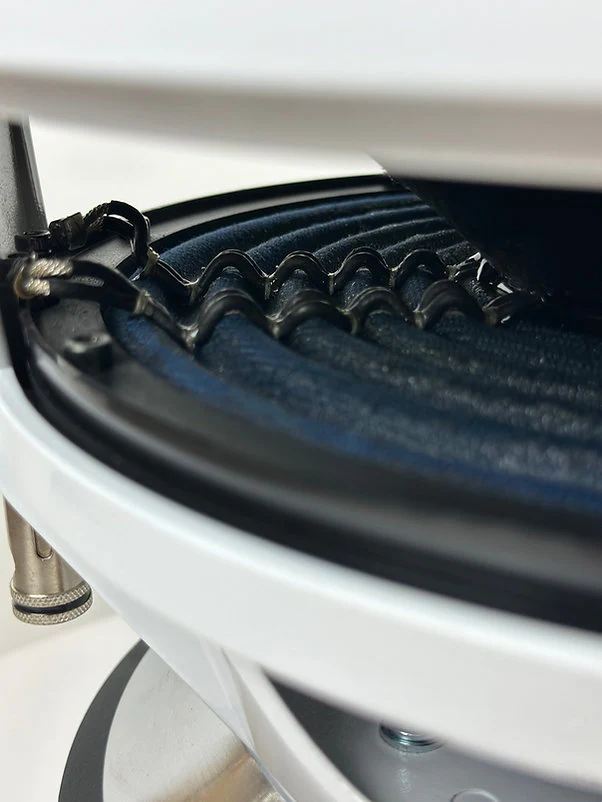

| Surround | New High Roll Tooled Surround |
| Spider / Leads | 10" Spider Pack with Insulated Dual Leads |
| Frame/Basket | Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 2.00 - 3.00 CU FT |
| Tuning Frequency | 28 - 33 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 10.25 INCHES |
| Cutout Diameter | 11.175 INCHES |
| Displacement | 0.25 CU FT |
