RESILIENT SOUNDS GOLD V2 15" DUAL 2 OHM (D2) SUBWOOFER
Unleash Deep Bass Power with the Resilient Sounds
The Resilient Sounds GOLD V2 15" D2 is designed to maximize output from amplifiers rated for 1 Ohm stability. Sharing the robust foundation of the GOLD V2 line, it handles a conservative 1500W RMS and features an advanced motor assembly, including a 3-inch 4-layer voice coil and 31mm of linear excursion (XMAX). This subwoofer is engineered for those who prioritize massive bass output and require a low-impedance setup. The Dual 2 Ohm voice coil configuration makes it perfectly suited for wiring two woofers to a 1 Ohm final load or a single woofer to a 4 Ohm load, offering unparalleled flexibility in high-power car audio systems.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 15" |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |
| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot |
| Surround / Spider | NEW High Roll Tooled Surround, 10" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |

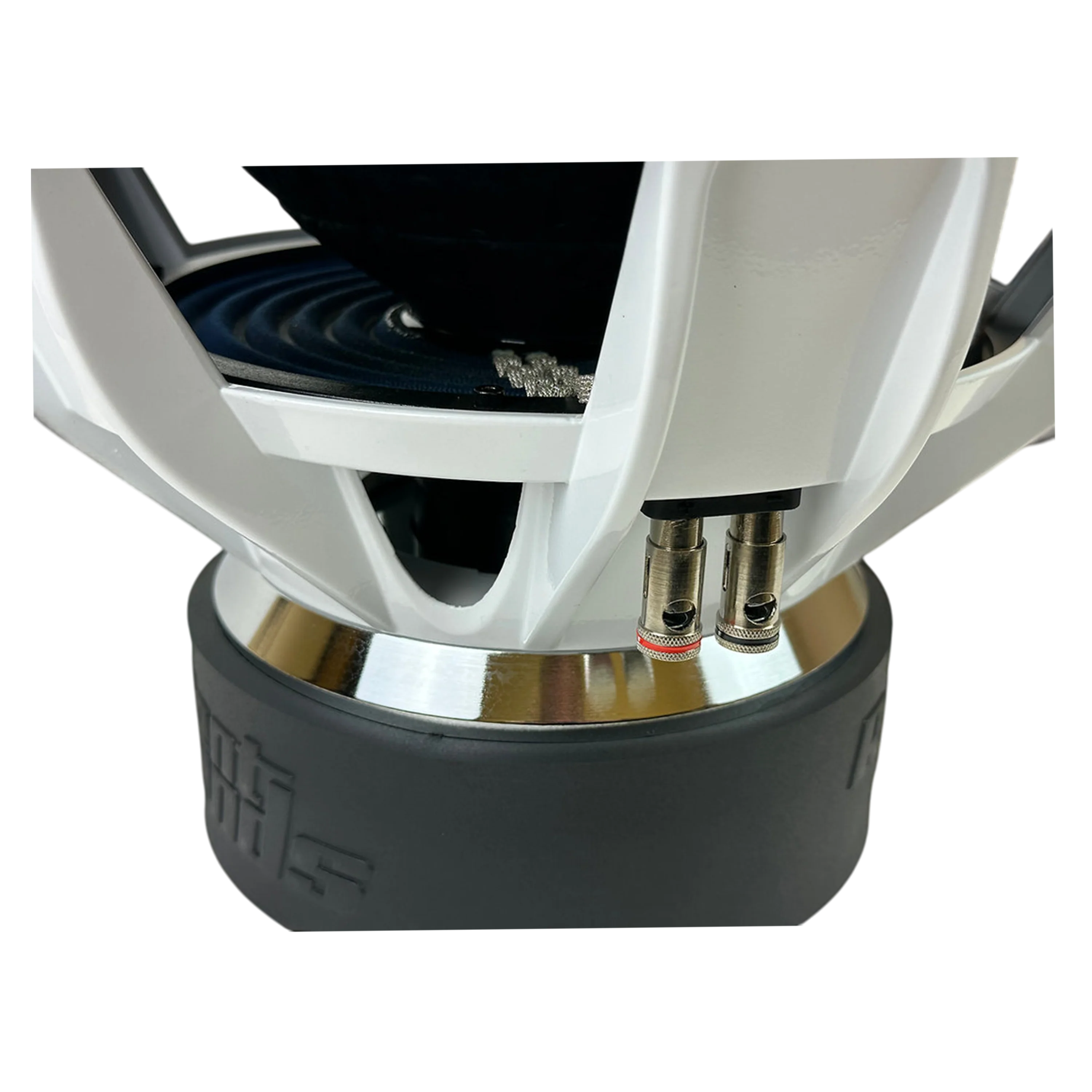

| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Shorting Ring | Aluminum |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 2.25 - 3.25 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 10.375 INCHES |
| Cutout Diameter | 14.2363 INCHES |
| Displacement | 0.24 CU FT |
| Outside Diameter | 15 7/32 INCHES |
