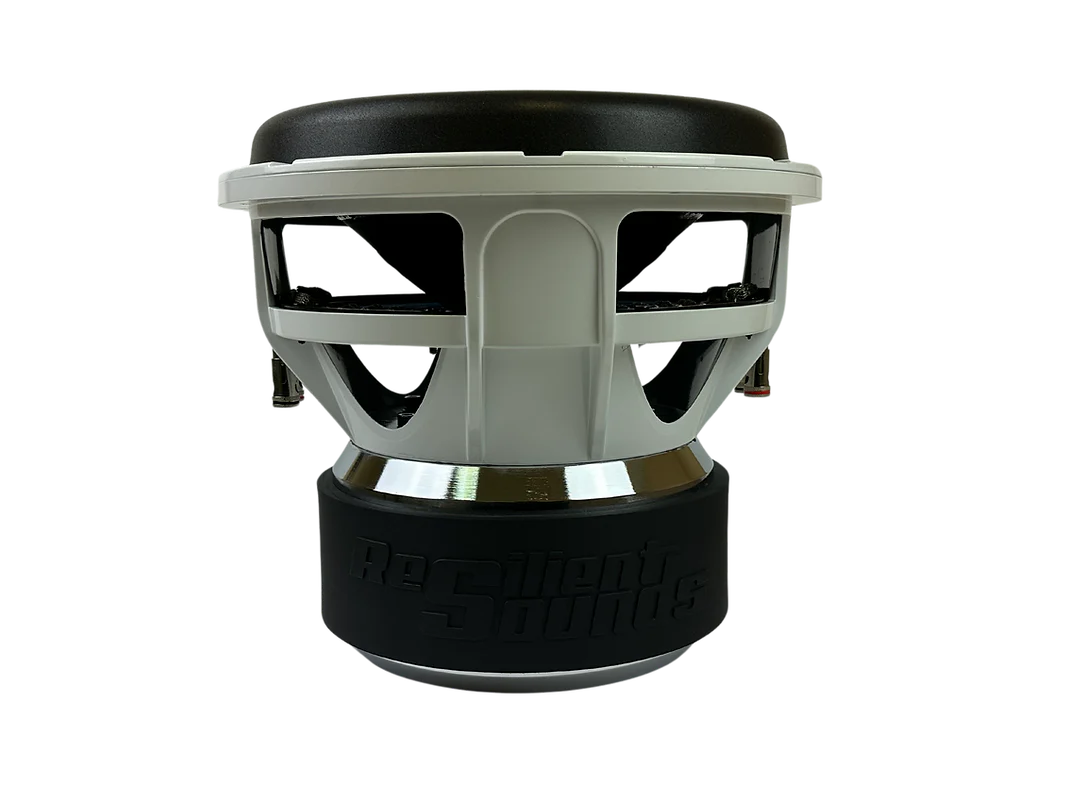

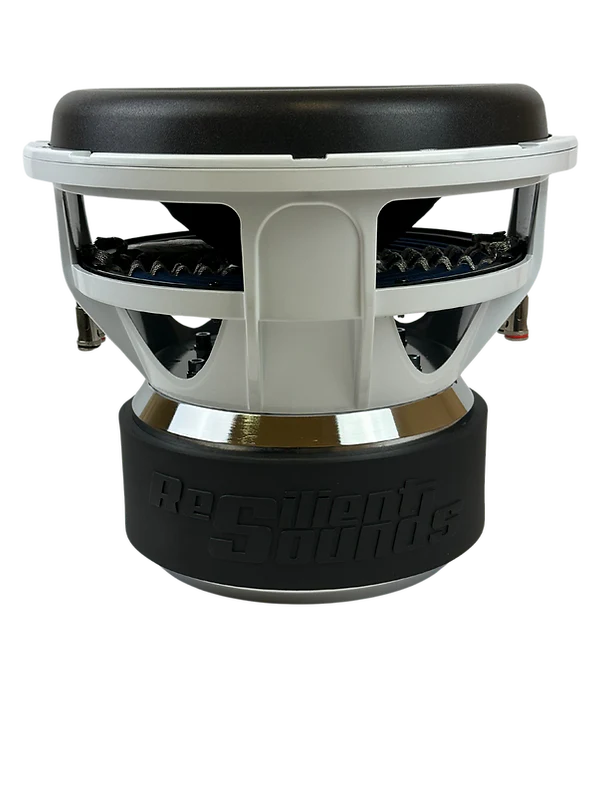

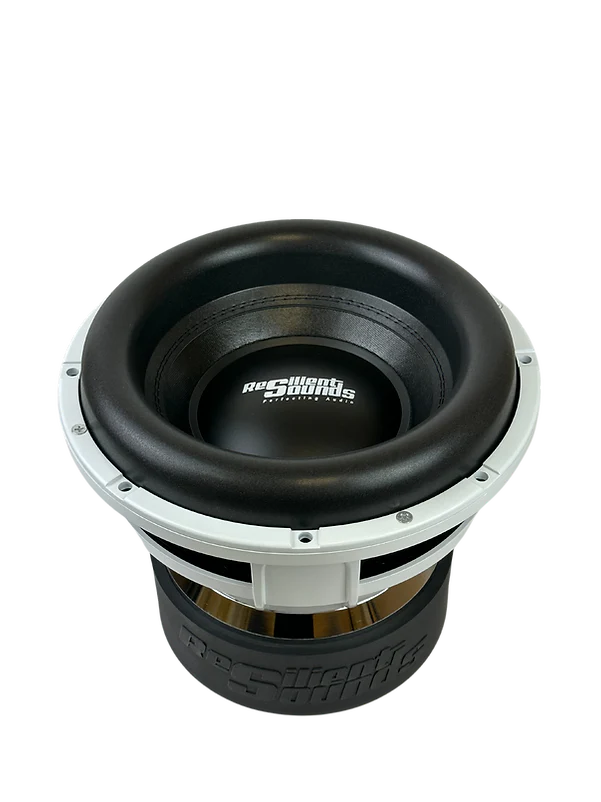

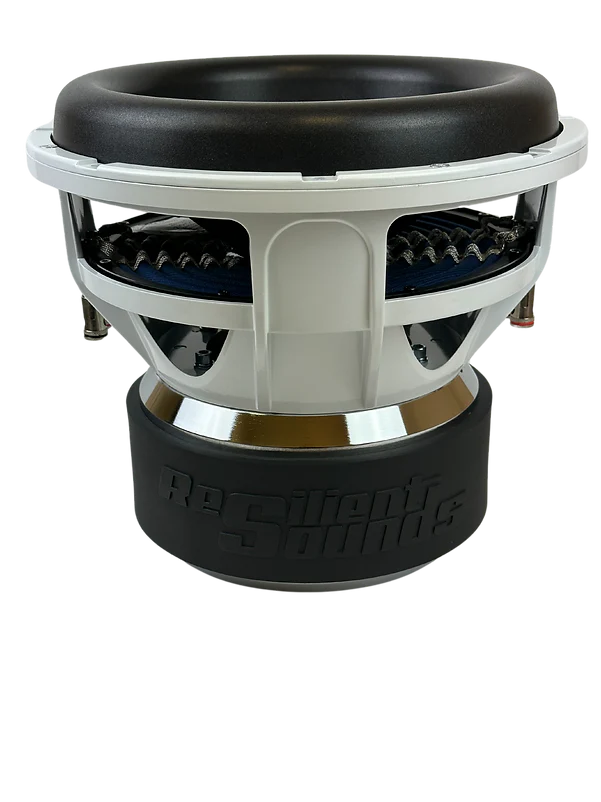

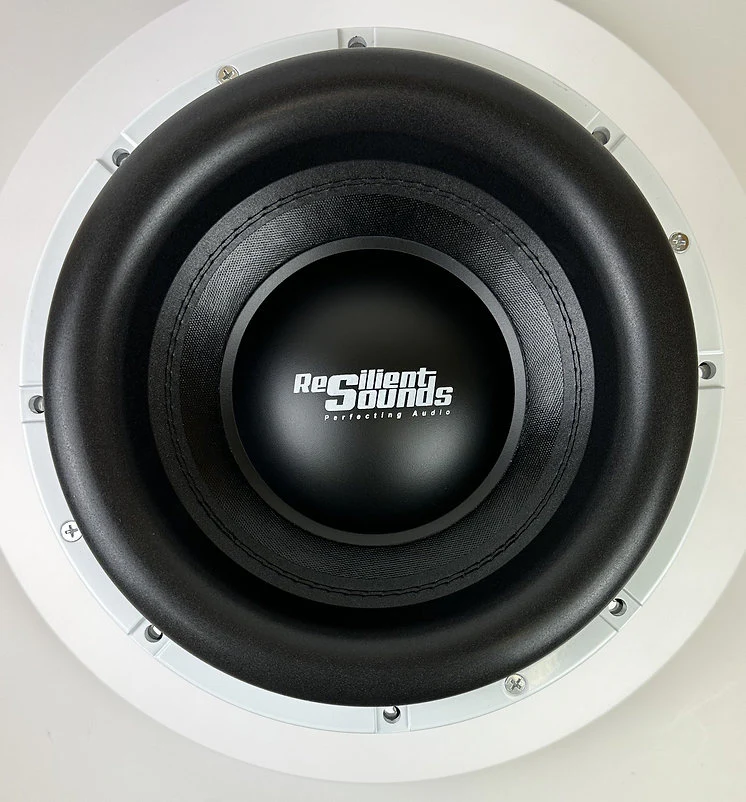

RESILIENT SOUNDS GOLD V2 12" DUAL 4 OHM (D4) SUBWOOFER
Reference-Grade Performance in a 12-Inch Platform
The Resilient Sounds GOLD V2 12" D4 subwoofer delivers the same extreme performance features as its larger siblings, engineered for enthusiasts who demand high excursion and robust power handling in a space-conscious 12-inch format. Conservatively rated at 1500W RMS, it is built around a heavy-duty, triple-stacked 220mm motor and an extended 3-inch 4-layer voice coil, allowing for an incredible 31mm of linear excursion (XMAX). The Dual 4 Ohm voice coil is optimized for flexible wiring, allowing system designers to easily achieve a 2 Ohm or 8 Ohm final load, perfect for most common mono amplifier setups.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 12" |
| Nominal Impedance | Dual 4 Ohm (D4) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |

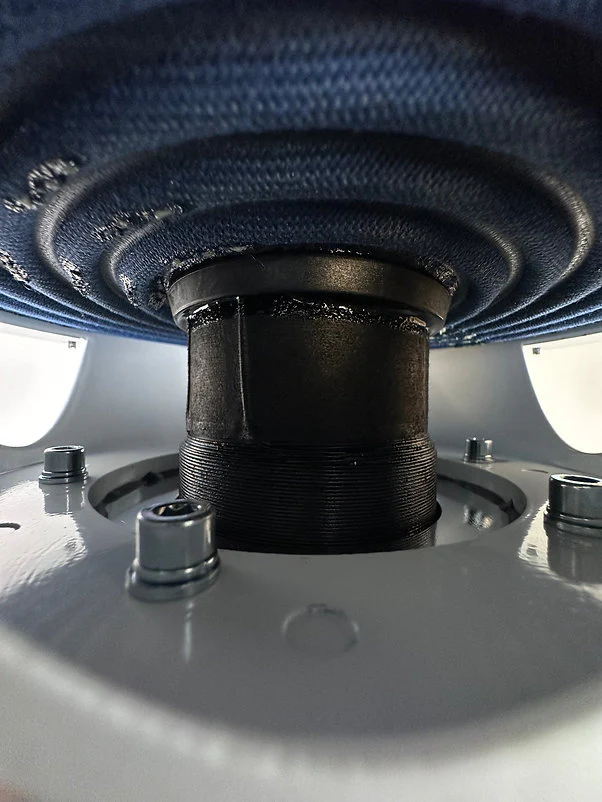

| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |

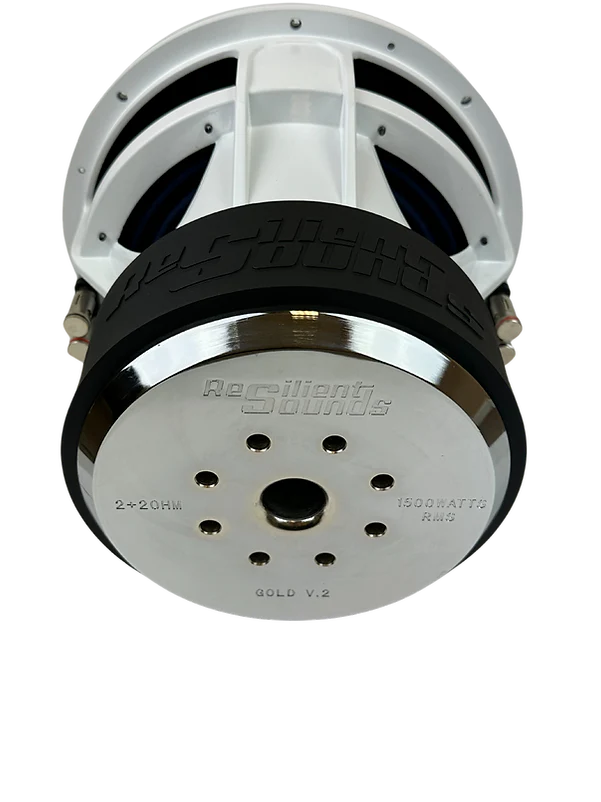

| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot |

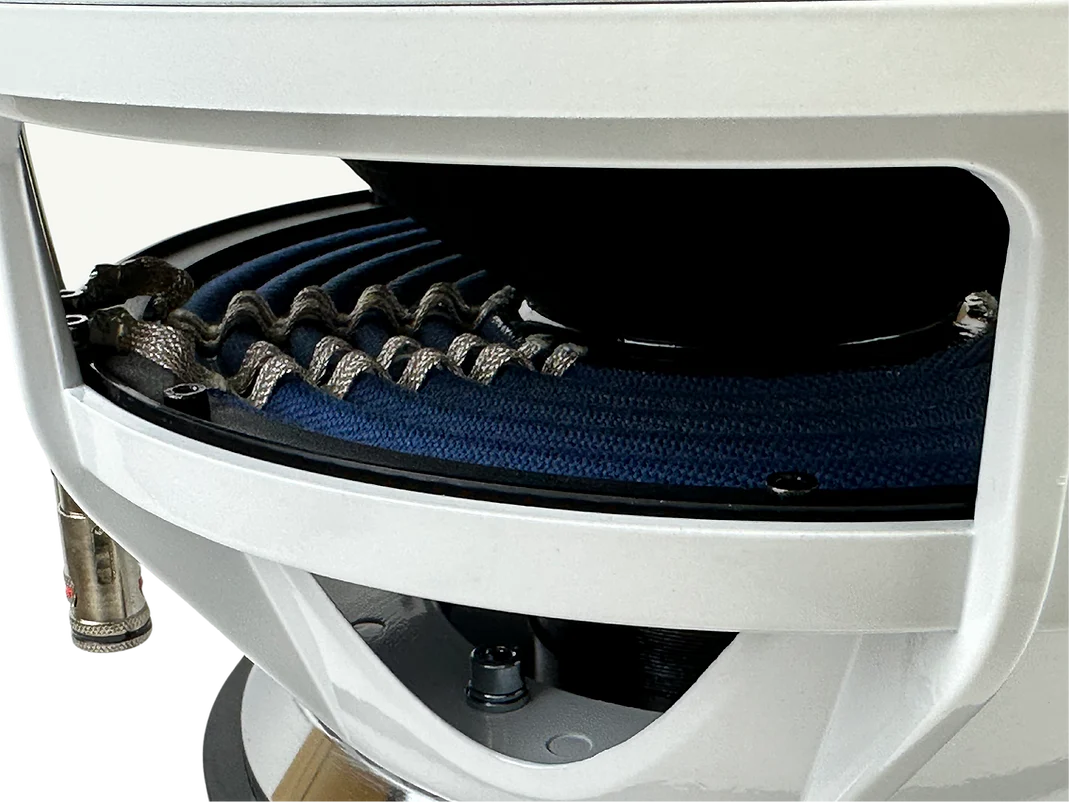

| Surround / Spider | NEW High Roll Tooled Surround, 10" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |
| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Shorting Ring | Aluminum |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.75 - 2.75 CU FT |
| Tuning Frequency | 29 - 33 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 9.125 INCHES |
| Cutout Diameter | 11.175 INCHES |
| Displacement | 0.20 CU FT |
| Outside Diameter | 12 5/32 INCHES |
Description
Reference-Grade Performance in a 12-Inch Platform
The Resilient Sounds GOLD V2 12" D4 subwoofer delivers the same extreme performance features as its larger siblings, engineered for enthusiasts who demand high excursion and robust power handling in a space-conscious 12-inch format. Conservatively rated at 1500W RMS, it is built around a heavy-duty, triple-stacked 220mm motor and an extended 3-inch 4-layer voice coil, allowing for an incredible 31mm of linear excursion (XMAX). The Dual 4 Ohm voice coil is optimized for flexible wiring, allowing system designers to easily achieve a 2 Ohm or 8 Ohm final load, perfect for most common mono amplifier setups.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 12" |
| Nominal Impedance | Dual 4 Ohm (D4) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |
| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot |
| Surround / Spider | NEW High Roll Tooled Surround, 10" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |
| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Shorting Ring | Aluminum |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.75 - 2.75 CU FT |
| Tuning Frequency | 29 - 33 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 9.125 INCHES |
| Cutout Diameter | 11.175 INCHES |
| Displacement | 0.20 CU FT |
| Outside Diameter | 12 5/32 INCHES |
