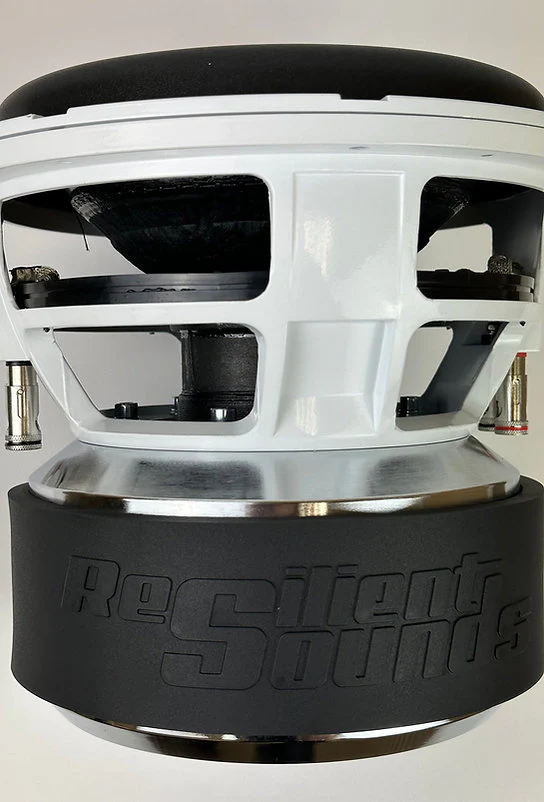

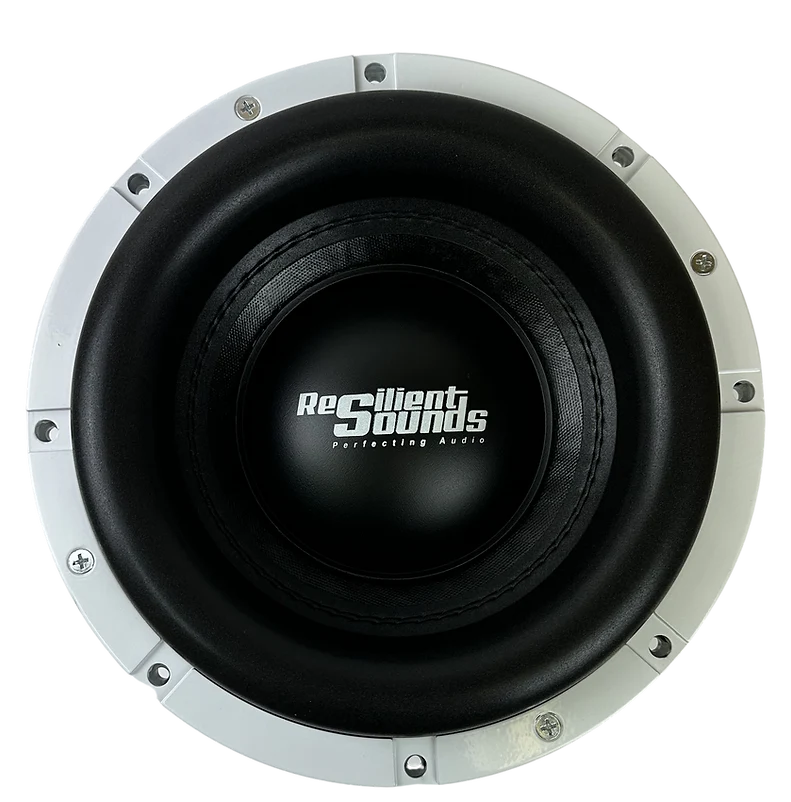

RESILIENT SOUNDS GOLD V2 10" DUAL 4 OHM (D4) SUBWOOFER
Unrivaled Power Density in a 10-Inch Frame
The Resilient Sounds GOLD V2 10" D4 subwoofer is a compact powerhouse, packing the high-performance features of the GOLD V2 line into a 10-inch format that excels in tight spaces. Conservatively rated at 1500W RMS, it is built for extreme output, featuring an immense 31mm of XMAX and a powerful, triple-stacked 220mm motor structure. The Dual 4 Ohm voice coil is perfect for common wiring configurations, allowing users to easily achieve a 2 Ohm or 8 Ohm final load. Utilizing a high-roll surround, 8.5-inch spider pack, and a rugged cast aluminum frame, this 10-inch woofer is designed to deliver authoritative, precise bass that belies its size.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 10" |
| Nominal Impedance | Dual 4 Ohm (D4) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |
| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot, Aluminum Shorting Ring |
| Surround / Spider | NEW High Roll Tooled Surround, 8.5" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |
| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.25 - 2 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 8.25 INCHES |
| Cutout Diameter | 9 7/16 INCHES |
| Displacement | 0.17 CU FT |
| Outside Diameter | 10 23/32 INCHES |
