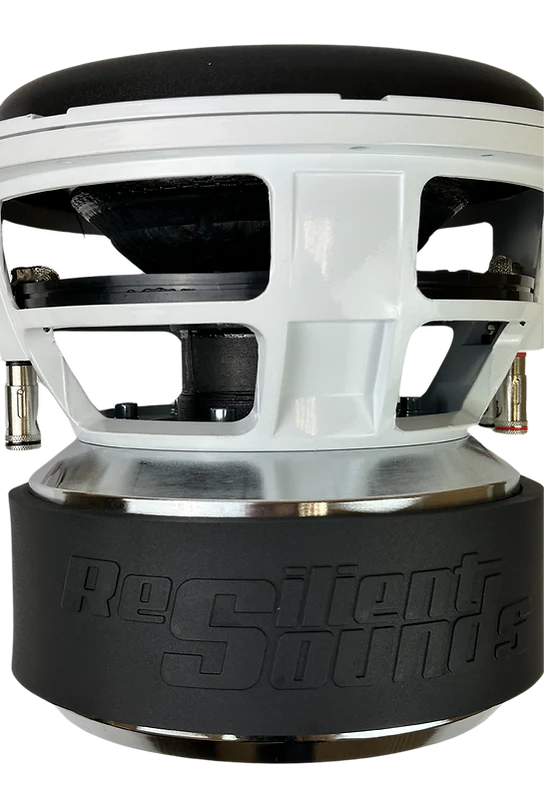

RESILIENT SOUNDS GOLD V2 10" DUAL 2 OHM (D2) SUBWOOFER
Low Impedance, High Impact 10-Inch Bass
The Resilient Sounds GOLD V2 10" D2 is engineered for high-efficiency systems where a low final impedance is critical. With a conservative 1500W RMS rating and a monumental 31mm of XMAX, this 10-inch subwoofer delivers uncompromising bass performance. Its core features—including the triple-stacked 220mm motor and the 3-inch 4-layer voice coil—ensure it handles extreme power reliably. The Dual 2 Ohm voice coil is optimized for achieving a 1 Ohm final load when wired in parallel (or 4 Ohms in series), making it the perfect match for high-current, 1 Ohm-stable mono amplifiers.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 10" |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |

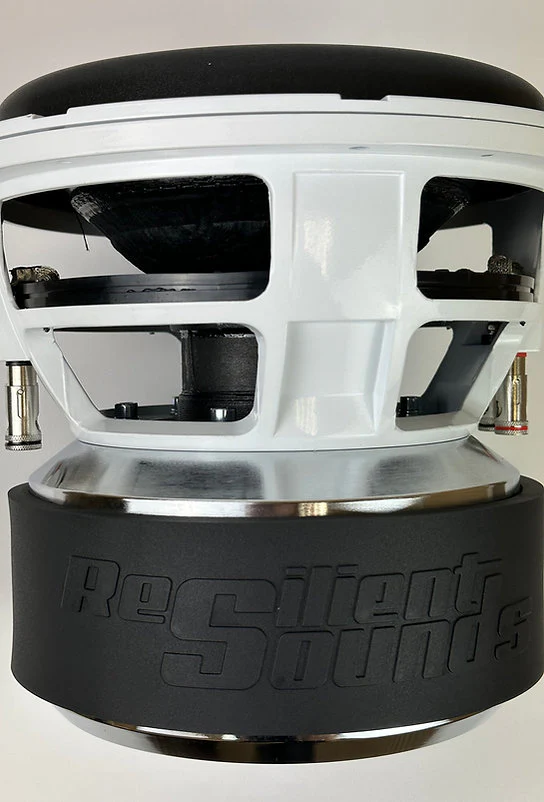

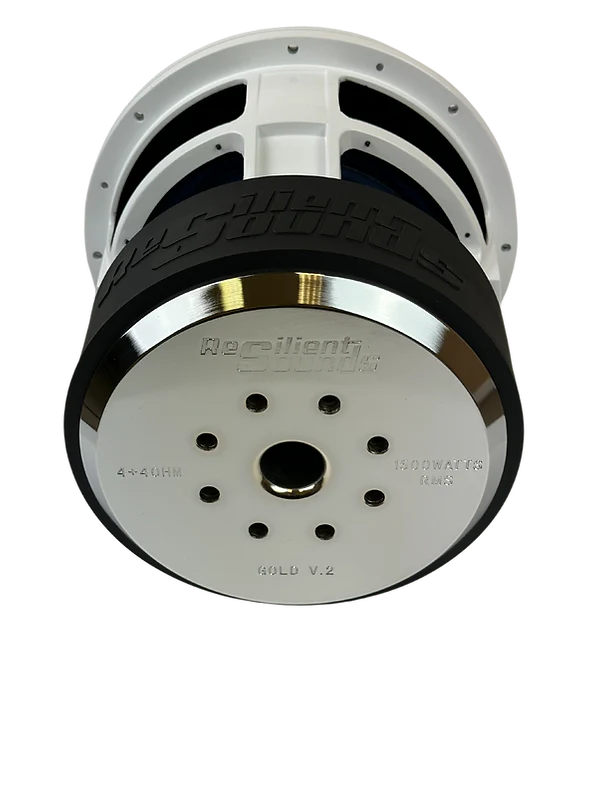

| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot, Aluminum Shorting Ring |

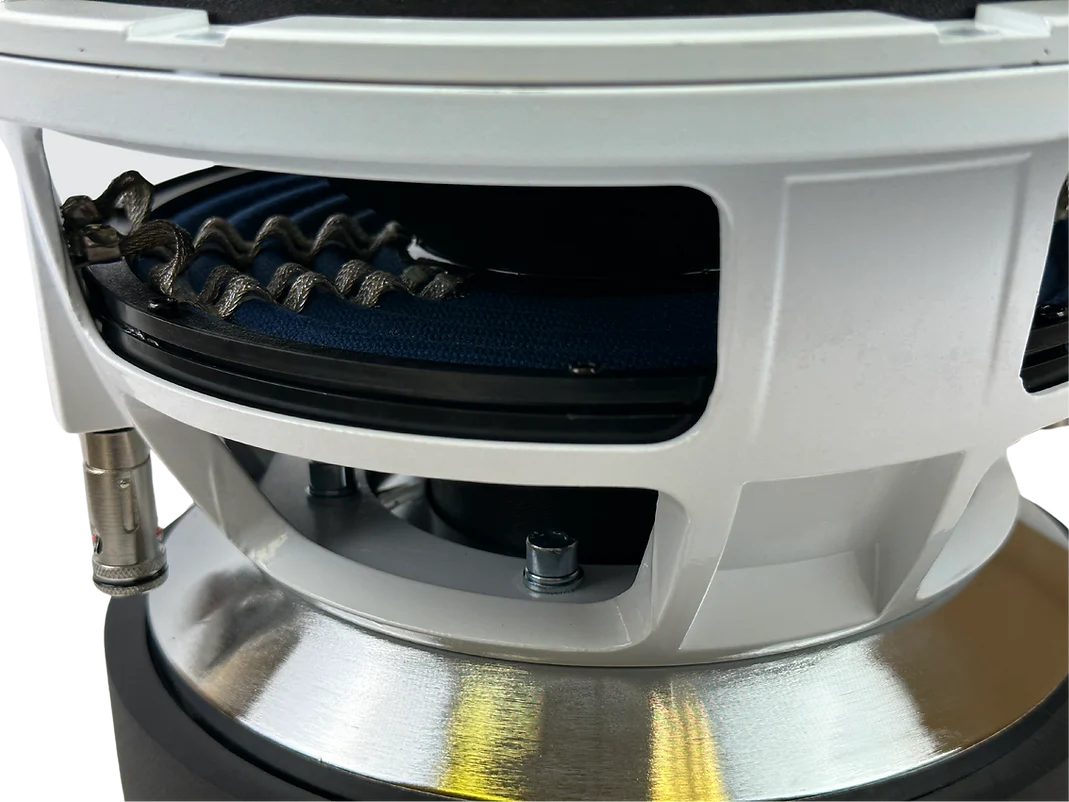

| Surround / Spider | NEW High Roll Tooled Surround, 8.5" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |
| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.25 - 2 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 8.25 INCHES |
| Cutout Diameter | 9 7/16 INCHES |
| Displacement | 0.17 CU FT |
| Outside Diameter | 10 23/32 INCHES |
