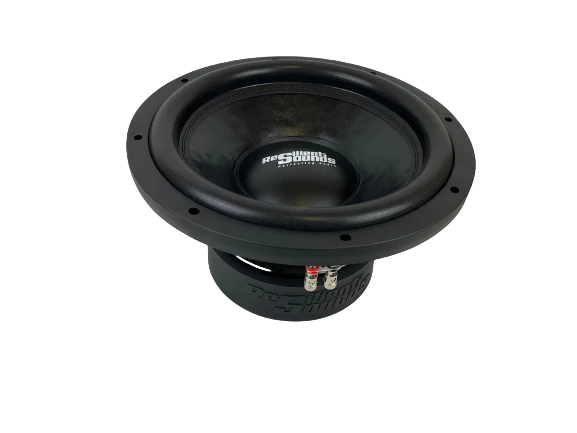

RESILIENT SOUNDS ENTRY V2 12" DUAL 4 OHM SUBWOOFER
Premium Entry-Level Power and Authority
The Resilient Sounds Entry V2 12" represents the peak of the new entry-level lineup, designed to maximize performance with a substantial 750W RMS power rating. This 12-inch subwoofer features significant enhancements in its motor and soft parts, including a robust 3-inch voice coil. This design yields massive increases in motor force (up to 43% in BL factor) over previous models, ensuring powerful and controlled bass. The Dual 4 Ohm impedance allows for wiring to a 2 Ohm or 8 Ohm final load, offering ideal flexibility for high-current mono amplifiers. Built to handle abuse, the RS V2 12" provides lasting, daily resilient bass performance.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | RS 12 V2 |
| RMS Power Handling | 750 Watts |
| Voice Coil | 3" |
| Nominal Impedance | Dual 4 Ohm |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 85.7 dB |
| Resonance Frequency (Fs) | 31.140 Hz |
| BL Factor (BL) | 28.793 |
| DC Resistance (RE) | 7.6 Ohms |
| Mechanical Q (QMS) | 3.023 |
| Electrical Q (QES) | 0.483 |
| Total Q (QTS) | 0.416 |
| Compliance (CMS) | 0.097 uM/N |
| Moving Mass (MMS) | 269.274 g |
| Equivalent Volume (VAS) | 38.831 L |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.5 - 2.25 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 6.75 INCHES |
| Cutout Diameter | 11.14 INCHES |
Description
Premium Entry-Level Power and Authority
The Resilient Sounds Entry V2 12" represents the peak of the new entry-level lineup, designed to maximize performance with a substantial 750W RMS power rating. This 12-inch subwoofer features significant enhancements in its motor and soft parts, including a robust 3-inch voice coil. This design yields massive increases in motor force (up to 43% in BL factor) over previous models, ensuring powerful and controlled bass. The Dual 4 Ohm impedance allows for wiring to a 2 Ohm or 8 Ohm final load, offering ideal flexibility for high-current mono amplifiers. Built to handle abuse, the RS V2 12" provides lasting, daily resilient bass performance.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | RS 12 V2 |
| RMS Power Handling | 750 Watts |
| Voice Coil | 3" |
| Nominal Impedance | Dual 4 Ohm |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 85.7 dB |
| Resonance Frequency (Fs) | 31.140 Hz |
| BL Factor (BL) | 28.793 |
| DC Resistance (RE) | 7.6 Ohms |
| Mechanical Q (QMS) | 3.023 |
| Electrical Q (QES) | 0.483 |
| Total Q (QTS) | 0.416 |
| Compliance (CMS) | 0.097 uM/N |
| Moving Mass (MMS) | 269.274 g |
| Equivalent Volume (VAS) | 38.831 L |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.5 - 2.25 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 6.75 INCHES |
| Cutout Diameter | 11.14 INCHES |
