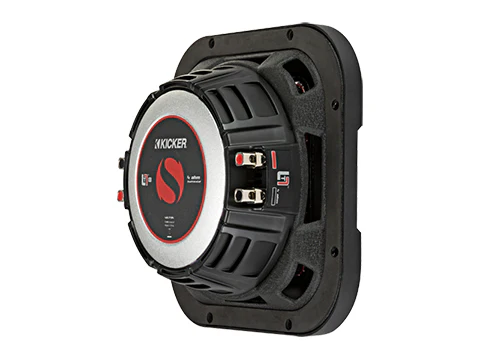

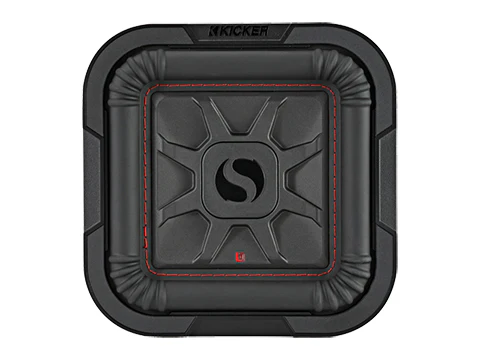

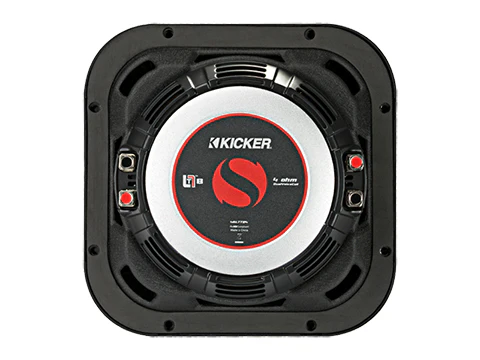

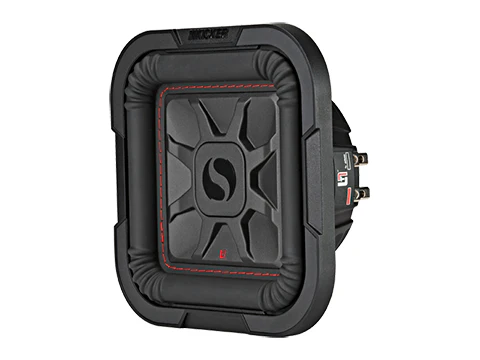

Kicker 46L7T84 8" 700W Dual 4 Ohm Car Audio Subwoofer
8" L7T 4 Ohm
The L7T 8-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.
Features:
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
Specifications
| Thiele/Small Parameters |
| 46L7T84 T/S Parameters |
| Product Dimension Sheet |
| 46L7T8 Dimensions |
| CNC Software |
| L7T.DXF - for subwoofer hole cutouts |
| 3D Printing Software |
| L7T.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) |
| 8, 20 |
| Impedance (OHMS) |
| 4 DVC |
| Recommended Amplifier Power (watts RMS) |
| 350 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 700 |
| Sensitivity (dB 1w/1m) |
| 84.835 |
| Frequency Response (Hz) |
| 30-100 |
| Mounting Depth (IN.,CM) |
| 2-3/4, 7 |
| Mounting Cutout, Square (IN.,CM) |
| 7-3/8, 18.8 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
| 0.2, 5.66 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
| .75, 21.2 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
| .8, 22.7 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
| 1.2, 34 |
| What's in the box? |
| one 8-inch subwoofer, one owner's manual, two stickers |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. |
$77.00
Original: $219.99
-65%Kicker 46L7T84 8" 700W Dual 4 Ohm Car Audio Subwoofer—
$219.99
$77.00
Description
8" L7T 4 Ohm
The L7T 8-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.
Features:
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
Specifications
| Thiele/Small Parameters |
| 46L7T84 T/S Parameters |
| Product Dimension Sheet |
| 46L7T8 Dimensions |
| CNC Software |
| L7T.DXF - for subwoofer hole cutouts |
| 3D Printing Software |
| L7T.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) |
| 8, 20 |
| Impedance (OHMS) |
| 4 DVC |
| Recommended Amplifier Power (watts RMS) |
| 350 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 700 |
| Sensitivity (dB 1w/1m) |
| 84.835 |
| Frequency Response (Hz) |
| 30-100 |
| Mounting Depth (IN.,CM) |
| 2-3/4, 7 |
| Mounting Cutout, Square (IN.,CM) |
| 7-3/8, 18.8 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
| 0.2, 5.66 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
| .75, 21.2 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
| .8, 22.7 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
| 1.2, 34 |
| What's in the box? |
| one 8-inch subwoofer, one owner's manual, two stickers |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. |
