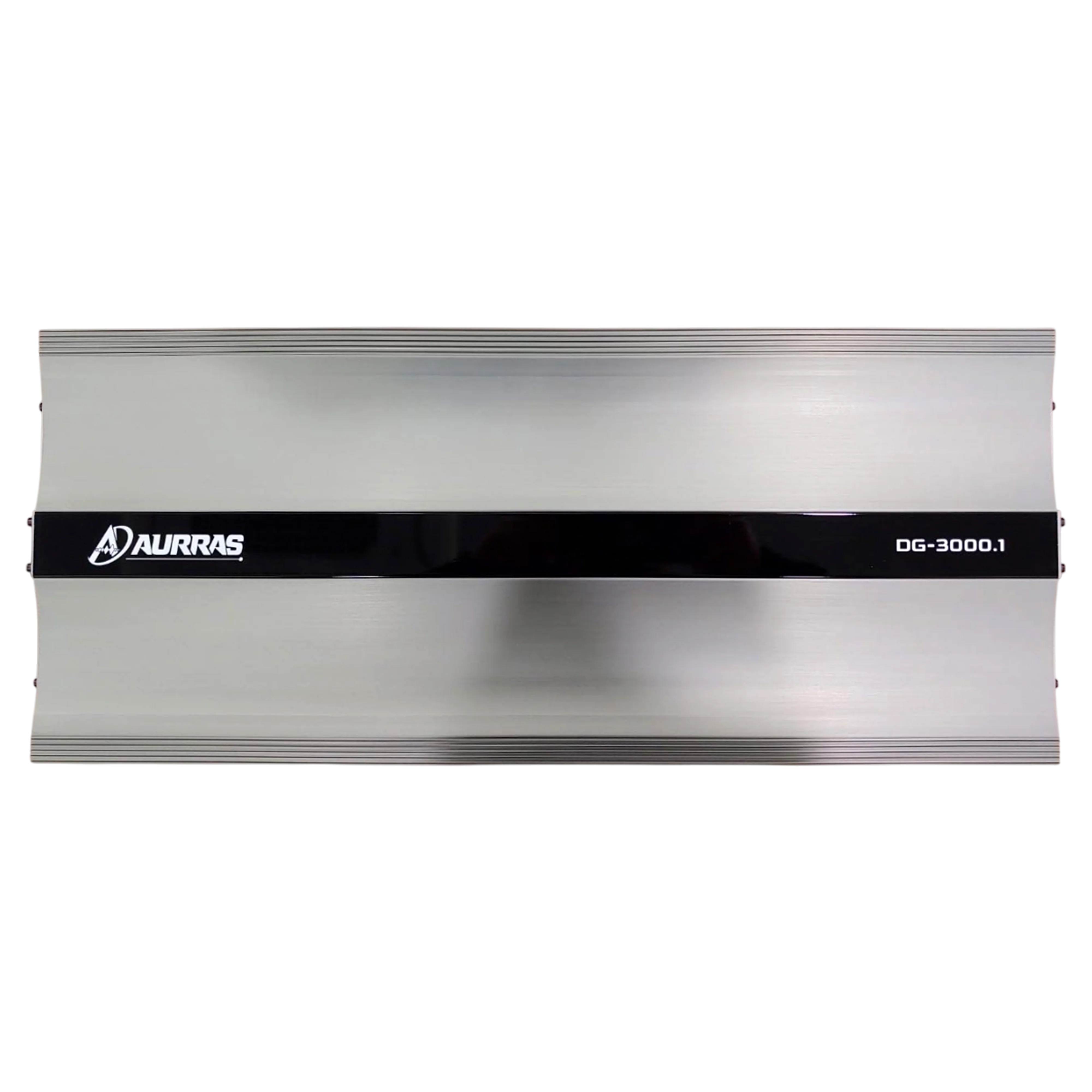

AURRAS Demi-God DG-3000.1 MONO AMPLIFIER
-
1120W x 1 RMS @ 4 ohms Mono (14.4V)
-
2450W x 1 RMS @ 2 ohms Mono (14.4V)
-
4300W x 1 RMS @ 1 ohm Mono (14.4V)
-
Linked Capable: Up to 8600W x 1 @ 2 ohms (14.4V)
-
Precision variable Low-Pass Filter (30Hz-250Hz)
-
Essential Subsonic Filter (10Hz-60Hz)
-
Adjustable Bass Boost (0-12dB @ 45Hz) and Phase Control (0-180°)
-
Exceptional Signal to Noise Ratio: 95dB for clean bass delivery
If there's one thing The Amp Lab knows, it's amplifiers! Since 2016, we have worked on thousands of amplifiers, and we've used that knowledge, along with our over 25 years of hands-on experience in the car audio installation profession, to bring you Aurras. Our goal with the Aurras Demi-God DG-3000.1 is not to bring you the newest or most flashy amp on the market, but to deliver what we believe is the most reliable, capable, tested, and trusted amplifier design available! This high-power mono amplifier provides the massive, dependable output required for serious subwoofers while offering precise control over the crucial low-frequency range.

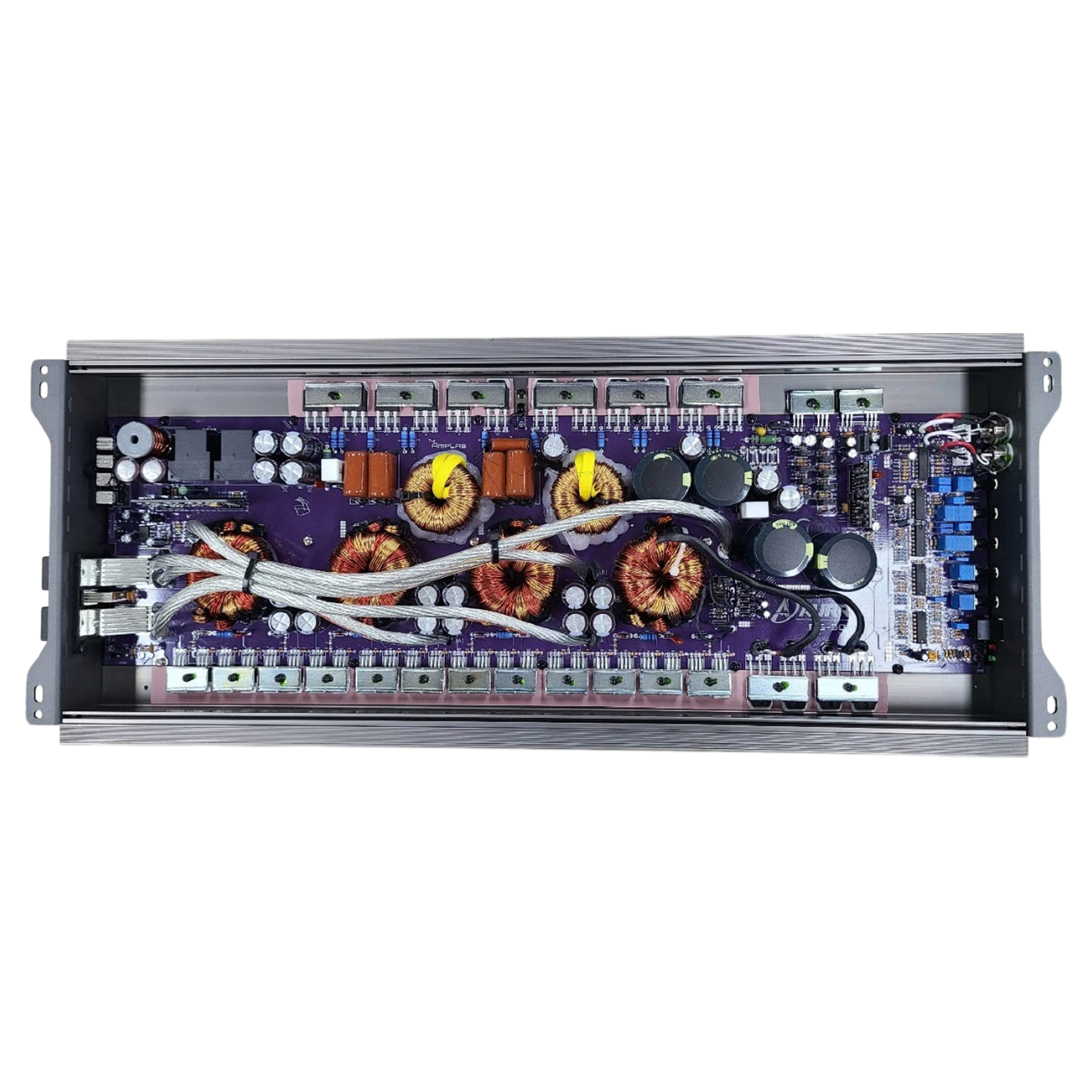

The Demi-God DG-3000.1 is engineered for maximum performance and durability, featuring a robust circuit design capable of extreme power delivery, including Linked Operation for combining two units into a single colossal amplifier. Its highly efficient design, with 90% efficiency at 4 ohms, ensures maximum output with minimal wasted heat. Controls like the Subsonic Filter, Bass Boost, and Phase Control allow you to perfectly integrate your subwoofer system into your vehicle's acoustics for deep, impactful, and controlled bass.
SPECIFICATIONS
-
Rated Power Output: 3000W
-
Input Sensitivity: 8V-200mV
-
Signal to Noise Ratio: 95dB
-
Low-Pass Filter: 30Hz-250Hz
-
Subsonic Filter: 10Hz-60Hz
-
Bass Boost (45Hz): 0-12dB
-
Phase Control: 0-180°
-
Frequency Response: 10Hz-350Hz
-
T.H.D. @ 4 ohm, 100Hz: 0.15%
-
Efficiency @ 4 ohm, 100Hz: 90%
-
Operating Voltage: DC 12V-16V
-
Recommended Fuse Rating: 300A (600A for Linked Operation)
-
Dimensions: 22.05" L x 9.45" W x 2.40" H
Specification |
Details |
| Continuous Power Output | @14.4V / @12.8V |
| - RMS Power, 4 ohms Mono | 1120W × 1CH / 1020W × 1CH |
| - RMS Power, 2 ohms Mono | 2450W × 1CH / 2200W × 1CH |
| - RMS Power, 1 ohm Mono | 4300W × 1CH / 3700W × 1CH |
| - RMS Power, 4 ohms Linkable / Dual Mono | 4900W × 1CH / 4400W × 1CH |
| - RMS Power, 2 ohms Linkable / Dual Mono | 8600W × 1CH / 7400W × 1CH |
| Signal to Noise Ratio | 95 dB |
| Low Pass Frequency Crossover | 30 Hz – 250 Hz |
| Subsonic Filter | 10 Hz – 60 Hz |
| Bass Boost @ 45Hz | 0 – 12 dB |
| Phase Shift Control | 0 – 180° |
| Frequency Response | 10 Hz – 350 Hz (±1 dB) |
| T.H.D Continuous @ 4 ohms, 100Hz | 0.15% |
| Efficiency @ 4 ohms, 100Hz | 90% |
| Input Sensitivity | 8V – 200mV (±5%) |
| Dimensions (mm) | 240 (W) × 61 (H) × 560 (L) |
| Operating Voltage | DC 12V – 16V |
| Recommended Fuse Rating | 300A (Linked: 600A) |
