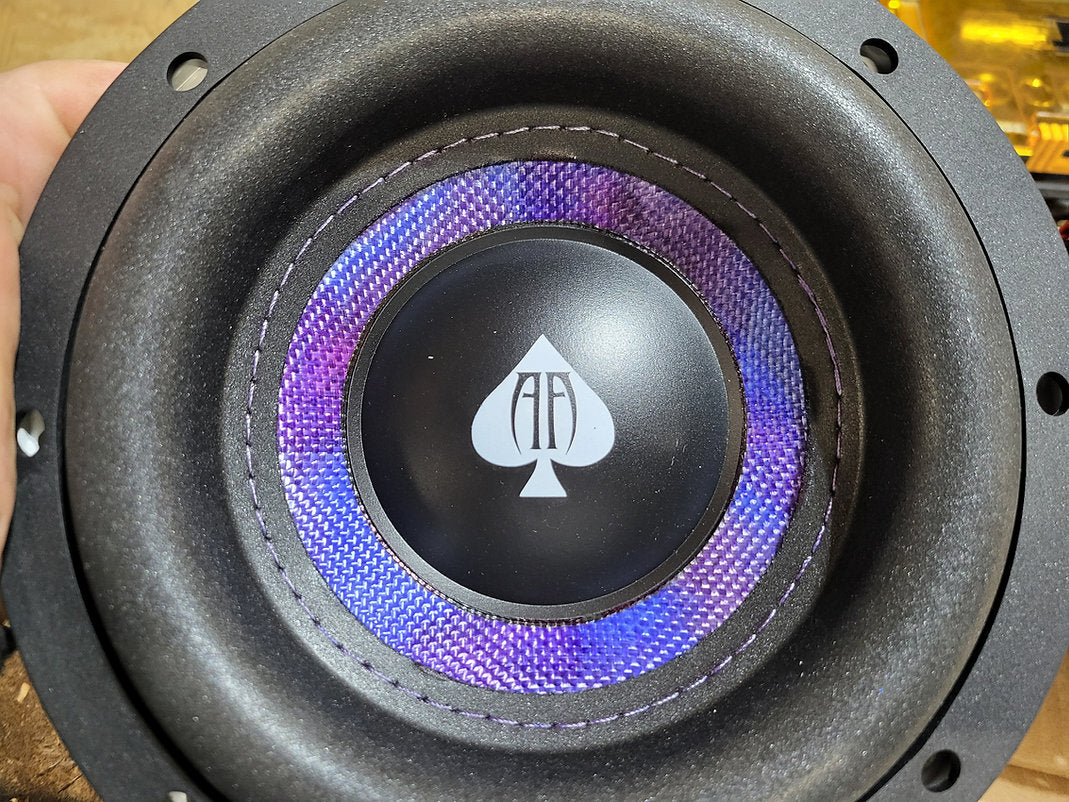

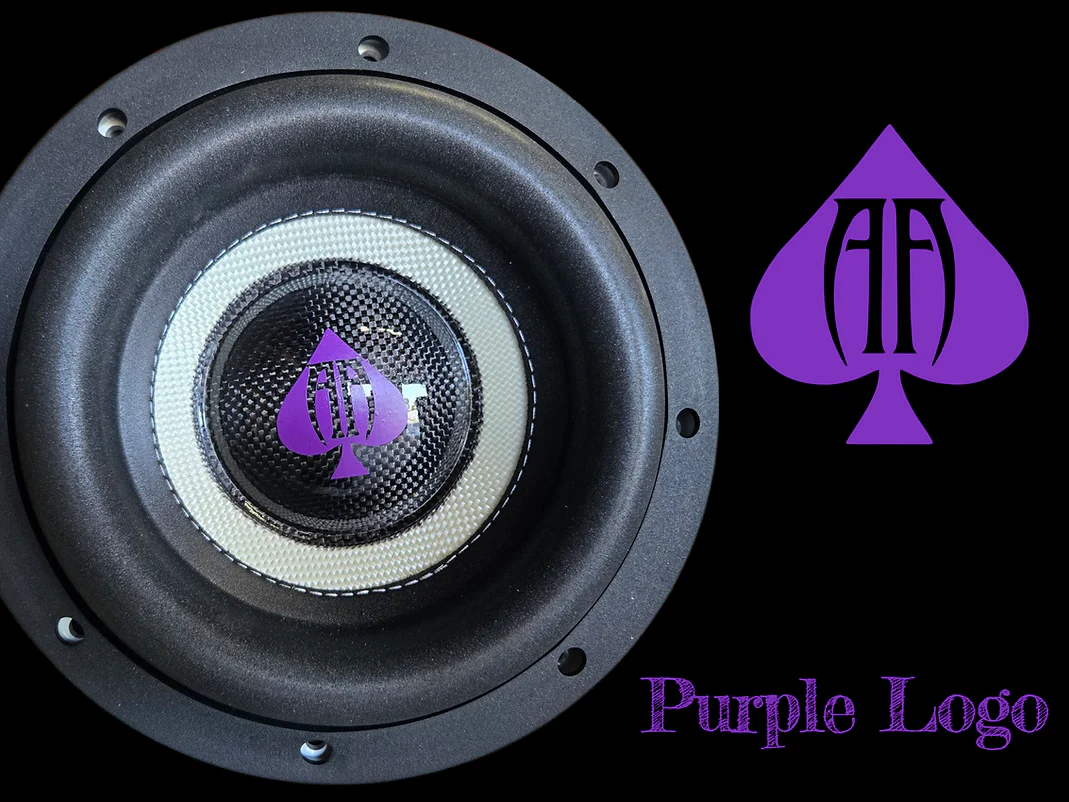

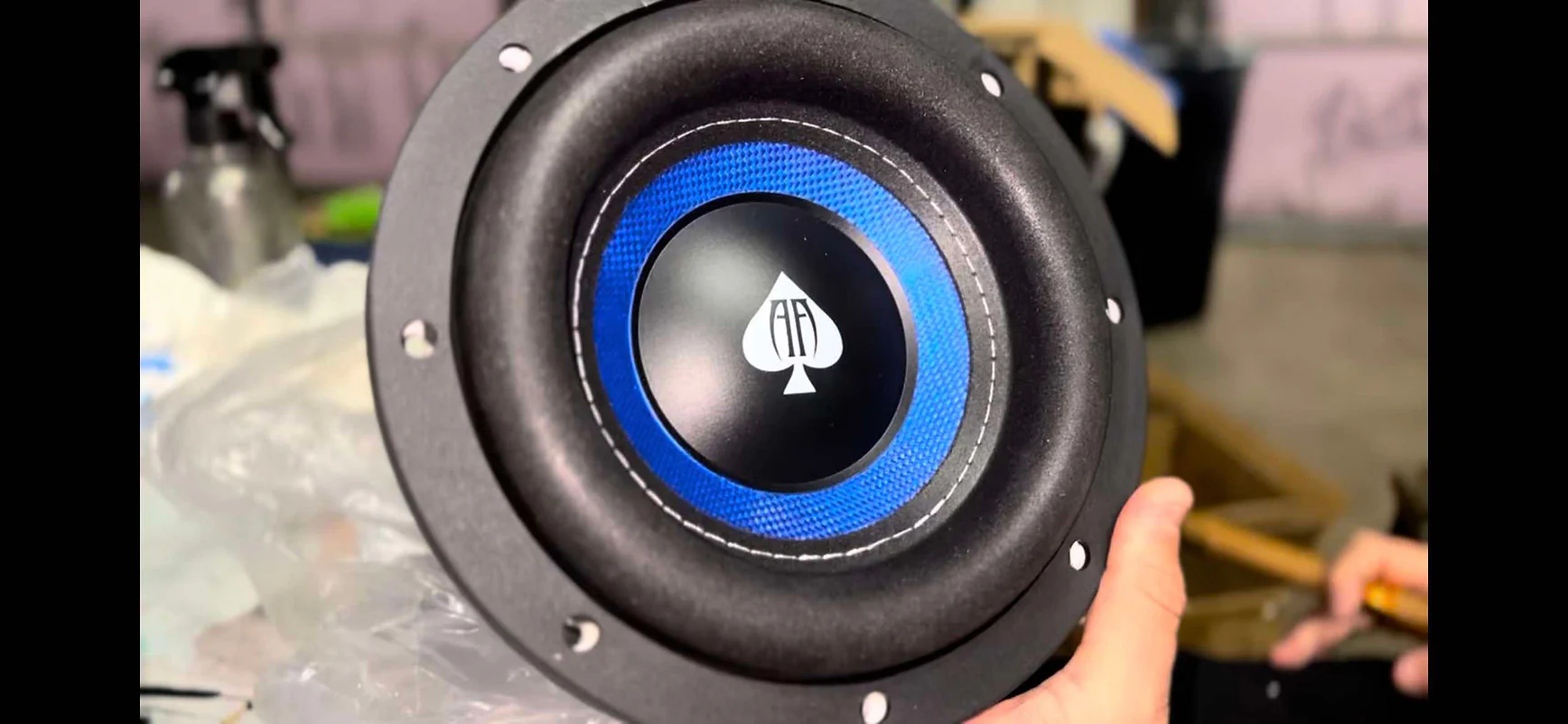

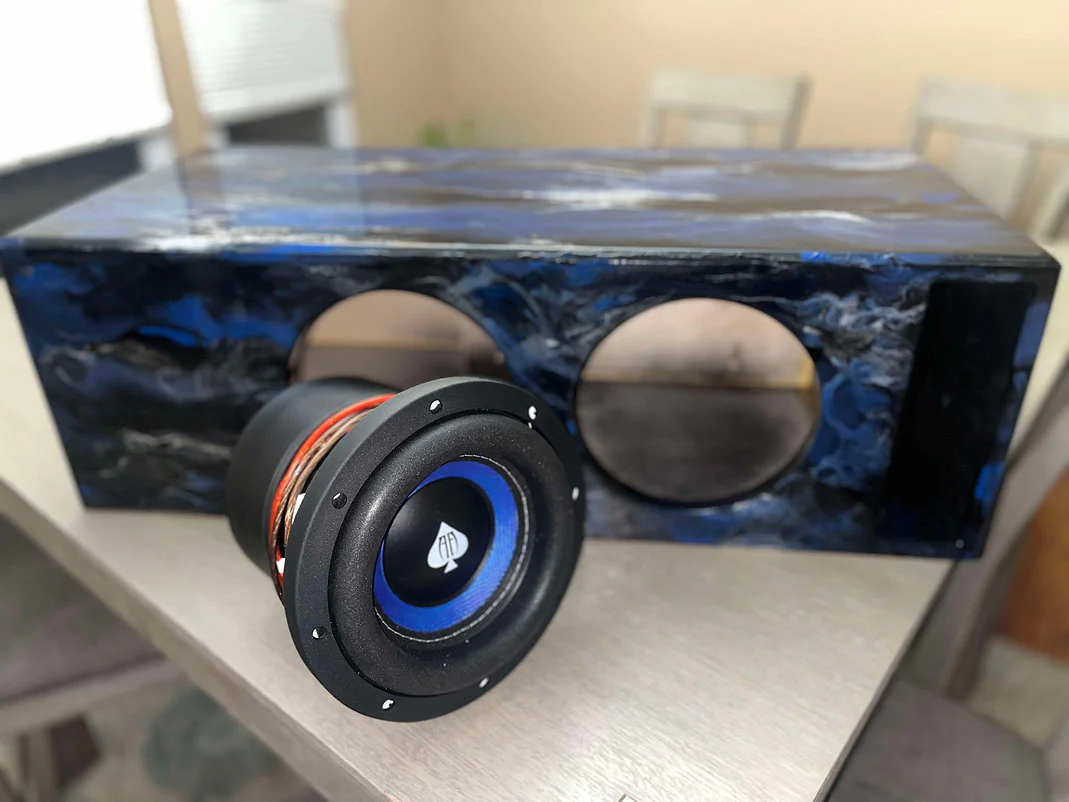

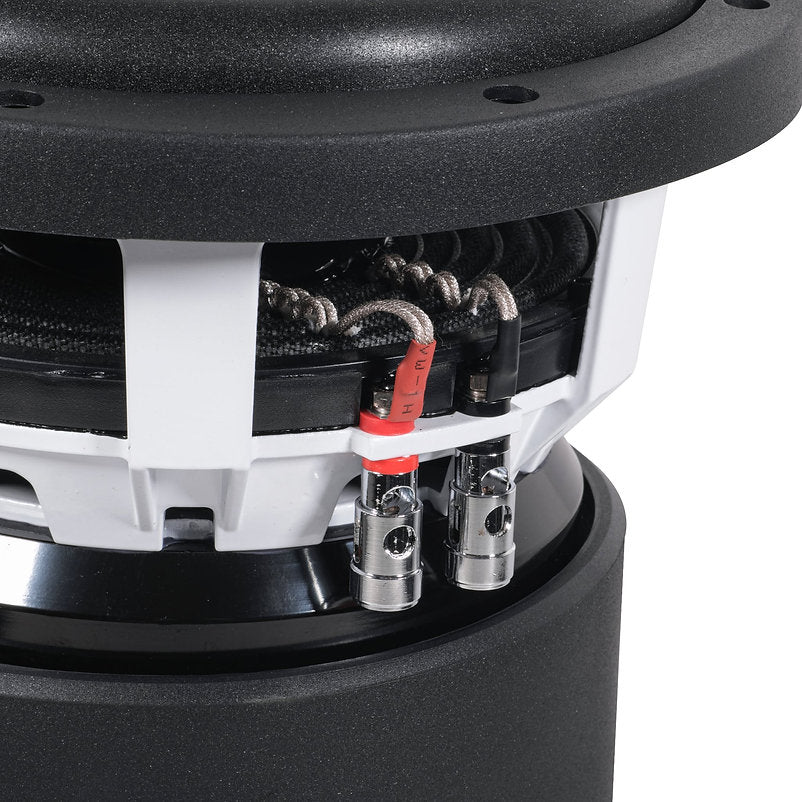

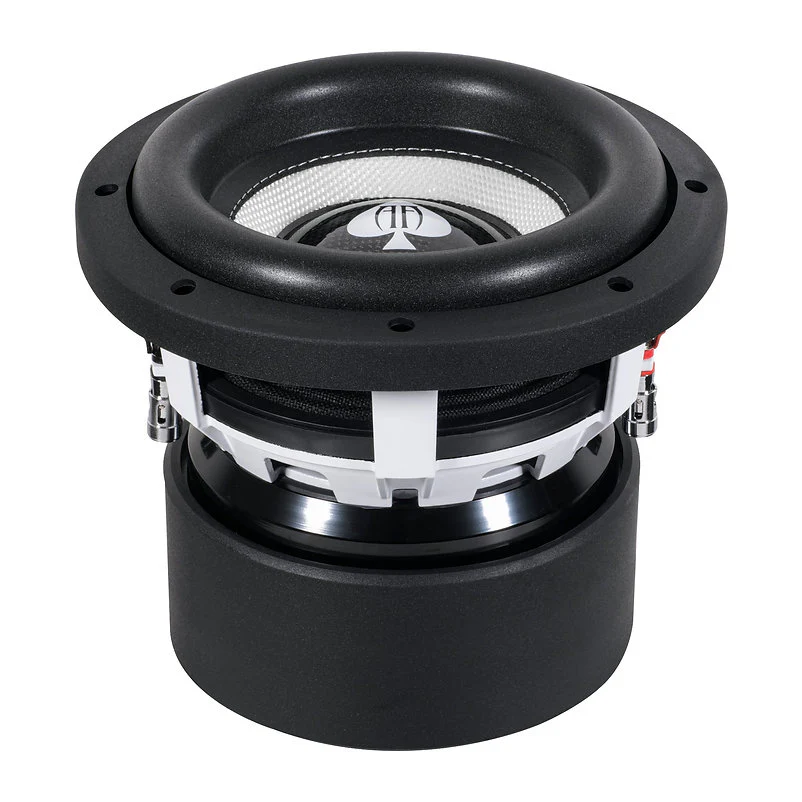

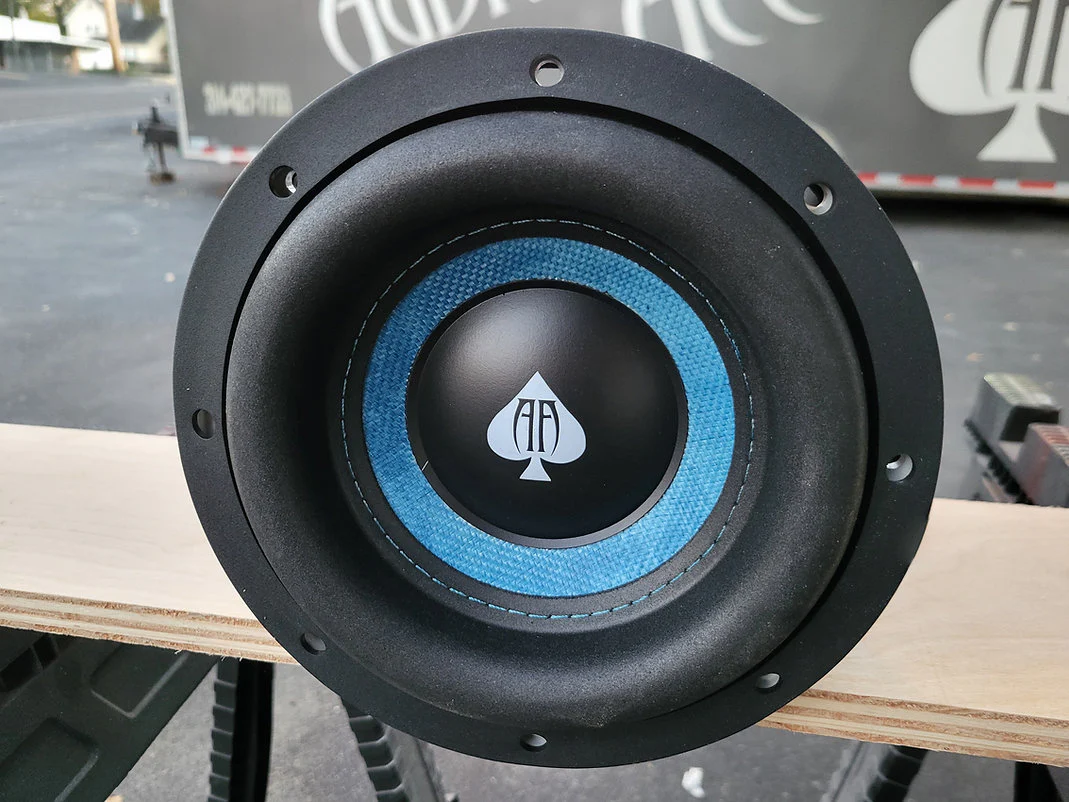

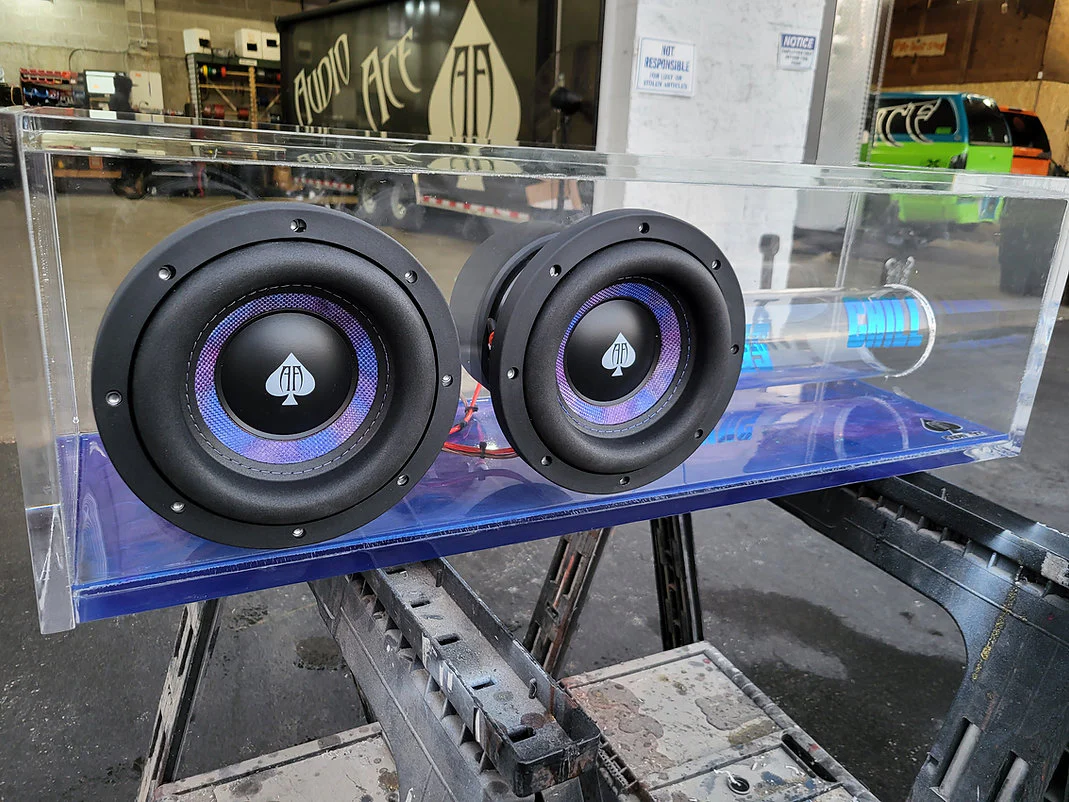

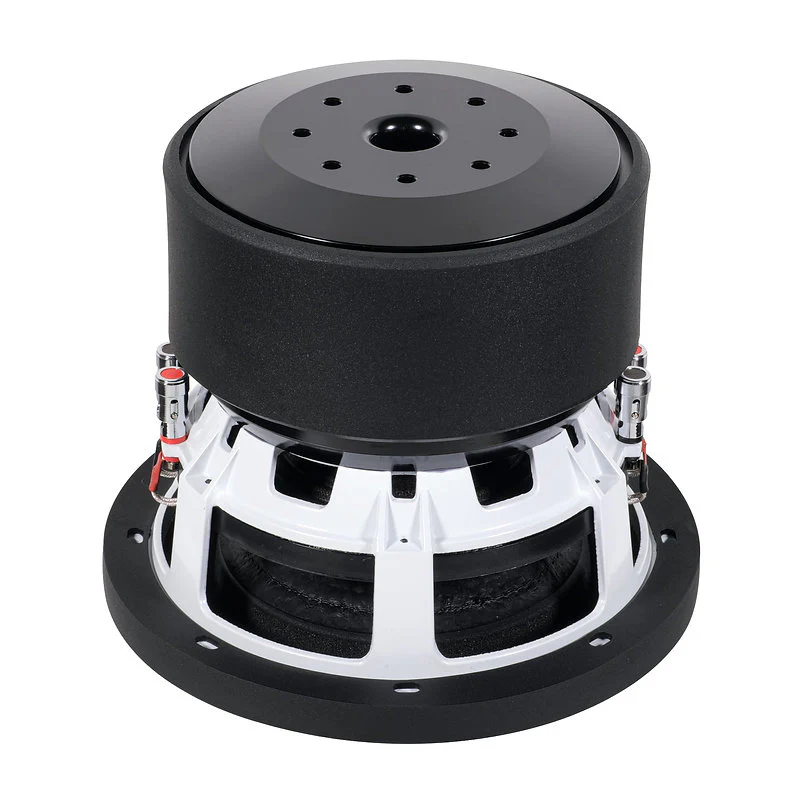

AUDIO ACE STR8 NST 8" DUAL 2 OHM SUBWOOFER

Product Overview: Audio Ace’s Budget-Friendly Powerhouse (D4)



The Audio Ace STR8 NST 8" D2 is an 8-inch subwoofer designed for big output on a budget. Rated for 1,000W RMS, this compact powerhouse is built to deliver strong sound and high performance without the flagship price tag. It features a 2.5-inch epoxy-coated voice coil, a robust 159 oz motor, and a linear excursion (X_max) of 15.5mm each way. The Dual 2 Ohm impedance provides flexible final impedance options of 1 Ohm or 4 Ohms.



AUDIO ACE STR8 NST 8" DUAL 4 OHM SPECIFICATIONS
Size	8 Inch
RMS Power Handling	1,000 Watts
Nominal Impedance	Dual 2 Ohm (D2)
Voice Coil	2.5 Inch Epoxy Coated
Motor Weight	159 oz
Maximum Excursion (Xmax)	15.5mm Each Way
Mounting Depth	6.5 Inches
Cutout Diameter	7.264 Inches
THIELE-SMALL PARAMETERS
Sensitivity (SPL)	82 dB
Electrical Q (Qes)	0.616
Mechanical Q (Qms)	5.529
Total Q (Qts)	0.554
Resonance Frequency (Fs)	54 Hz
Effective Piston Area (SD)	196.07
BL Factor (Bl)	19.132
