AUDIO ACE REBELLION 15" DUAL 1 OHM SUBWOOFER
Product Overview: Audio Ace's Versatile 4,000W 15-Inch Driver

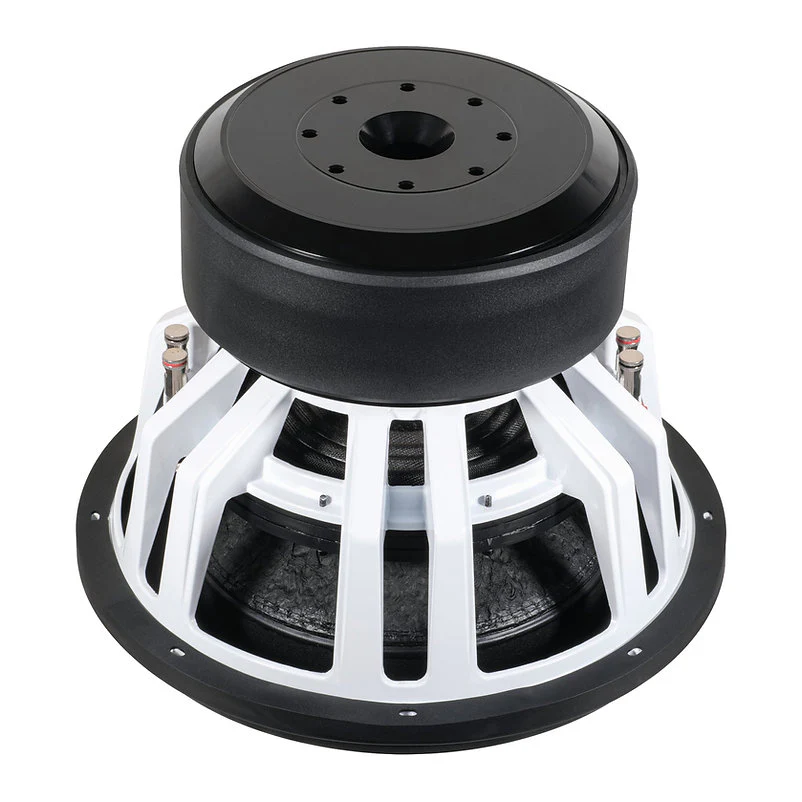

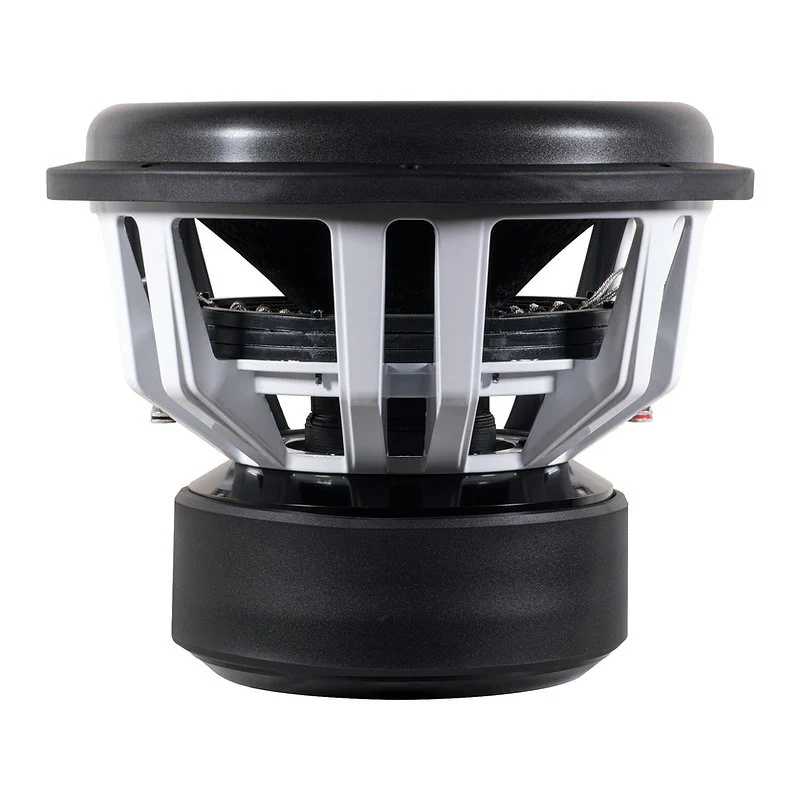

The Audio Ace Rebellion 15" D1 is a high-power subwoofer designed to excel in both Sound Quality (SQ) and sheer output (SPL). Rated at a massive 4,000W RMS, this 15-inch driver is built with a low Free Air Resonance (Fs) of 27 Hz and a strong 498 oz motor structure, making it highly versatile for great sound across various music styles. It features a 4-inch voice coil and a substantial linear excursion (Xmax) of 25mm each way. The Dual 1 Ohm impedance is perfect for high-current amplifier setups, allowing for an ultra-low 0.5 Ohm final impedance when wired in parallel. Choose the Rebellion for EXTREME sound levels whether you are competing or enjoying powerful daily bass.
| AUDIO ACE REBELLION 15" DUAL 1 OHM SPECIFICATIONS | |
|---|---|
| Model | Rebellion 15" |
| Nominal Impedance | Dual 1 Ohm (D1) |
| RMS Power Handling | 4,000 Watts |
| Voice Coil | 4 Inch D1 |
| Motor Weight | 498 oz |
| Maximum Excursion (Xmax) | 25mm Each Way |

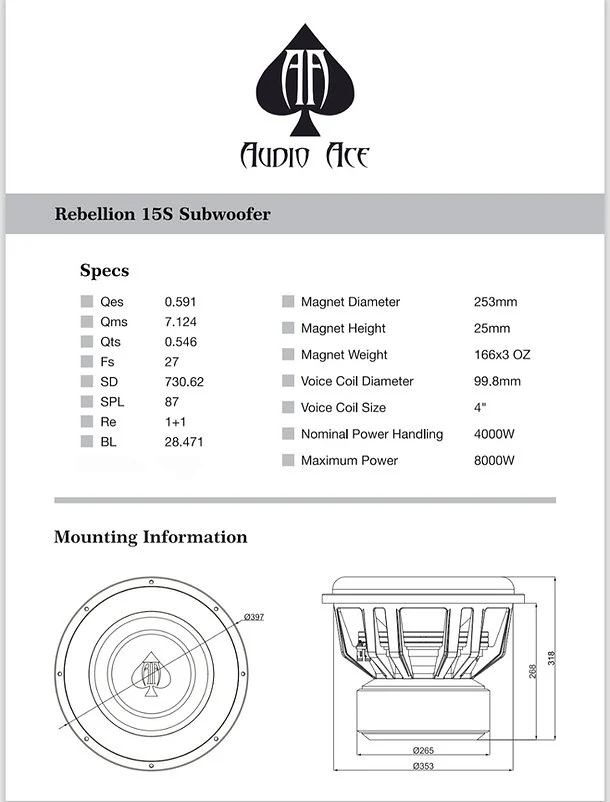

| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 87 dB |
| Electrical Q (Qes) | 0.591 |
| Mechanical Q (Qms) | 7.124 |
| Total Q (Qts) | 0.546 |
| Resonance Frequency (Fs) | 27 Hz |
| Effective Piston Area (SD) | 730.62 |
| DC Resistance (Re) | 1 + 1 Ohms |
| BL Factor (BL) | 28.471 |
Original: $849.00
-65%$849.00
$297.15
Description
Product Overview: Audio Ace's Versatile 4,000W 15-Inch Driver
The Audio Ace Rebellion 15" D1 is a high-power subwoofer designed to excel in both Sound Quality (SQ) and sheer output (SPL). Rated at a massive 4,000W RMS, this 15-inch driver is built with a low Free Air Resonance (Fs) of 27 Hz and a strong 498 oz motor structure, making it highly versatile for great sound across various music styles. It features a 4-inch voice coil and a substantial linear excursion (Xmax) of 25mm each way. The Dual 1 Ohm impedance is perfect for high-current amplifier setups, allowing for an ultra-low 0.5 Ohm final impedance when wired in parallel. Choose the Rebellion for EXTREME sound levels whether you are competing or enjoying powerful daily bass.
| AUDIO ACE REBELLION 15" DUAL 1 OHM SPECIFICATIONS | |
|---|---|
| Model | Rebellion 15" |
| Nominal Impedance | Dual 1 Ohm (D1) |
| RMS Power Handling | 4,000 Watts |
| Voice Coil | 4 Inch D1 |
| Motor Weight | 498 oz |
| Maximum Excursion (Xmax) | 25mm Each Way |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 87 dB |
| Electrical Q (Qes) | 0.591 |
| Mechanical Q (Qms) | 7.124 |
| Total Q (Qts) | 0.546 |
| Resonance Frequency (Fs) | 27 Hz |
| Effective Piston Area (SD) | 730.62 |
| DC Resistance (Re) | 1 + 1 Ohms |
| BL Factor (BL) | 28.471 |
