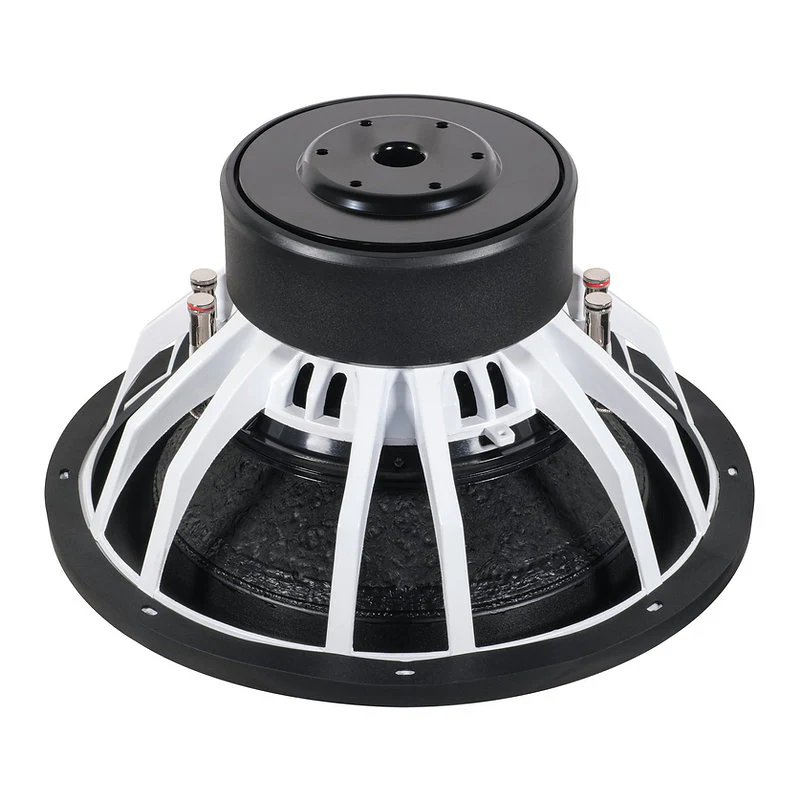

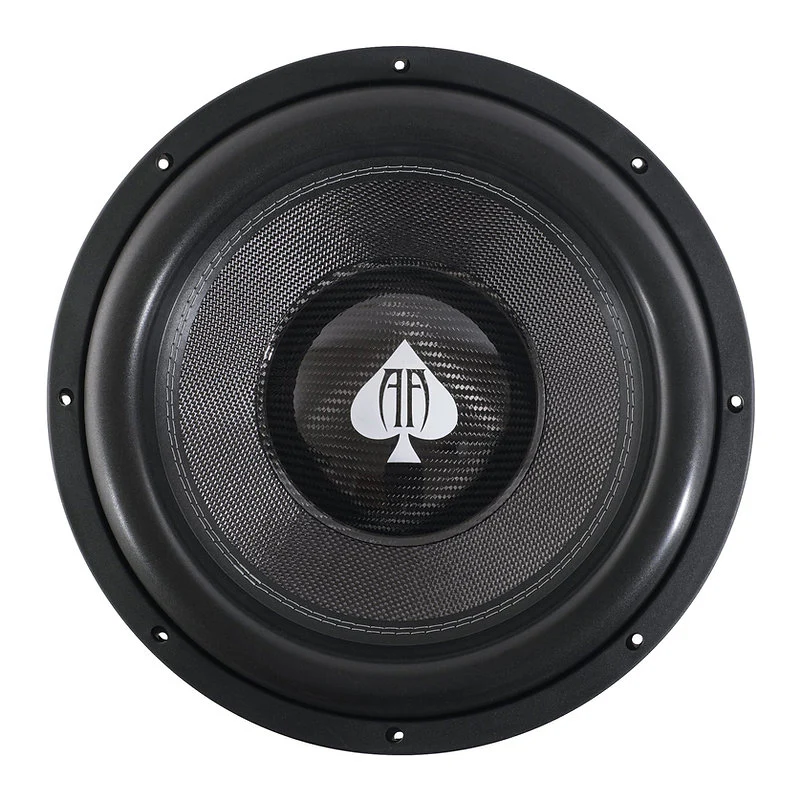

AUDIO ACE JOKER 15" V4 DUAL 2 OHM SUBWOOFER
Product Overview: The High-Performing Crowd-Pleaser
Don’t let the name fool you! The Audio Ace Joker 15" V4 D2 is NO JOKE and is one of Audio Ace’s most popular subwoofers. This 15-inch driver is rated at a very conservative 1,000W RMS, designed to outperform expectations with its wide roll surround, high-temperature 3-inch 4-layer epoxy voice coil, and high-efficiency 168oz FEA Optimized Magnet Motor. The Dual 2 Ohm impedance provides flexible wiring for a 1 Ohm or 4 Ohm final load. The Joker is versatile, performing great in Sealed, Ported, and Bandpass enclosures.

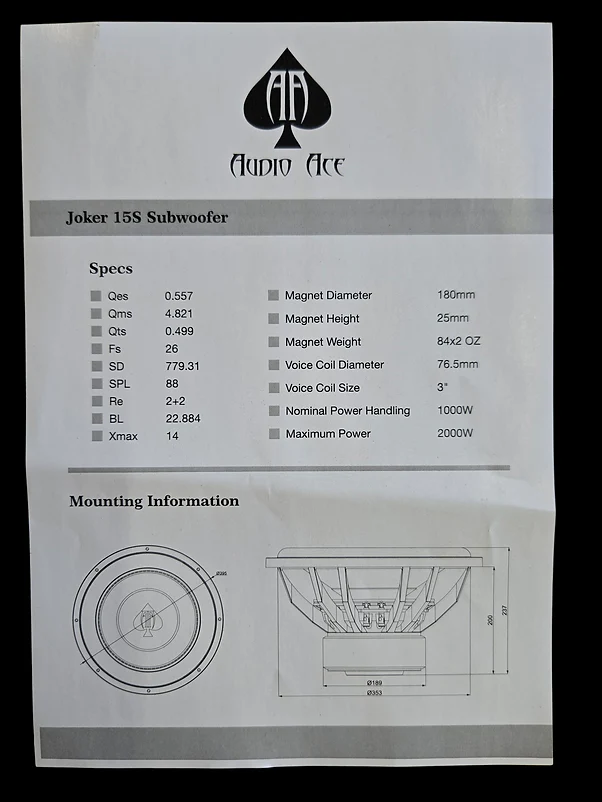

| AUDIO ACE JOKER 15" V4 DUAL 2 OHM SPECIFICATIONS | |
|---|---|
| Size | 15 Inch |
| RMS Power Handling (Conservative) | 1,000 Watts |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Voice Coil | 3 Inch 4 Layer Epoxy High Temp |
| Motor Weight | 168 oz (FEA Optimized) |
| Surround | Wide Roll Surround |
| Mounting Depth | 7.75 Inches |
| Cutout Diameter | 13.819 Inches |
| LOSS FACTORS & MISC PARAMETERS | |
| Total Q (Qts) | 0.499 |
| Mechanical Q (Qms) | 4.821 |
| Electrical Q (Qes) | 0.557 |
| Free Air Resonance (Fs) | 26.8 Hz |
| Sensitivity (Lm) | 85.70 dB |
| Equivalent Volume (Vas) | 67.0709 L |
| Moving Mass (Mms) | 450.600 g |
| BL Factor (Bl) | 22.884 |
Original: $279.00
-65%$279.00
$97.65
Description
Product Overview: The High-Performing Crowd-Pleaser
Don’t let the name fool you! The Audio Ace Joker 15" V4 D2 is NO JOKE and is one of Audio Ace’s most popular subwoofers. This 15-inch driver is rated at a very conservative 1,000W RMS, designed to outperform expectations with its wide roll surround, high-temperature 3-inch 4-layer epoxy voice coil, and high-efficiency 168oz FEA Optimized Magnet Motor. The Dual 2 Ohm impedance provides flexible wiring for a 1 Ohm or 4 Ohm final load. The Joker is versatile, performing great in Sealed, Ported, and Bandpass enclosures.
| AUDIO ACE JOKER 15" V4 DUAL 2 OHM SPECIFICATIONS | |
|---|---|
| Size | 15 Inch |
| RMS Power Handling (Conservative) | 1,000 Watts |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Voice Coil | 3 Inch 4 Layer Epoxy High Temp |
| Motor Weight | 168 oz (FEA Optimized) |
| Surround | Wide Roll Surround |
| Mounting Depth | 7.75 Inches |
| Cutout Diameter | 13.819 Inches |
| LOSS FACTORS & MISC PARAMETERS | |
| Total Q (Qts) | 0.499 |
| Mechanical Q (Qms) | 4.821 |
| Electrical Q (Qes) | 0.557 |
| Free Air Resonance (Fs) | 26.8 Hz |
| Sensitivity (Lm) | 85.70 dB |
| Equivalent Volume (Vas) | 67.0709 L |
| Moving Mass (Mms) | 450.600 g |
| BL Factor (Bl) | 22.884 |
