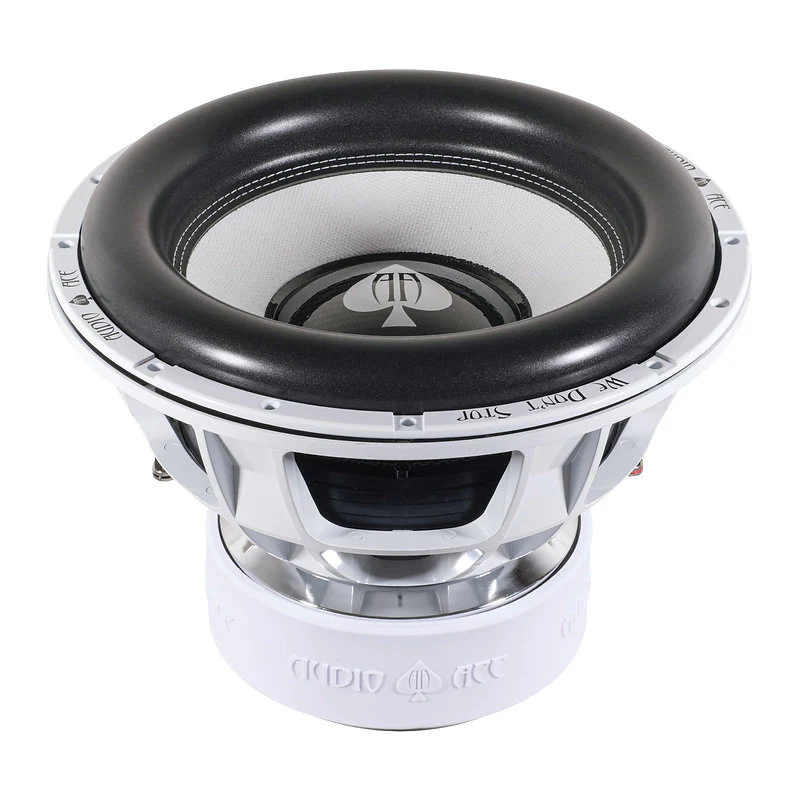

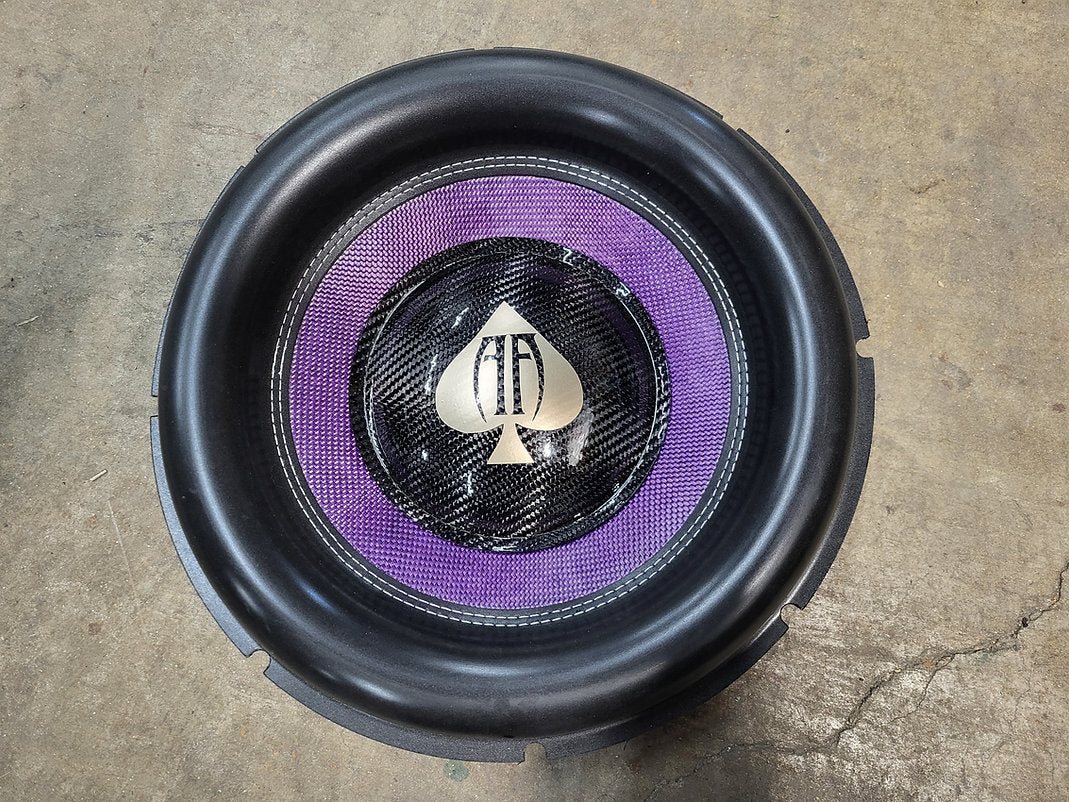

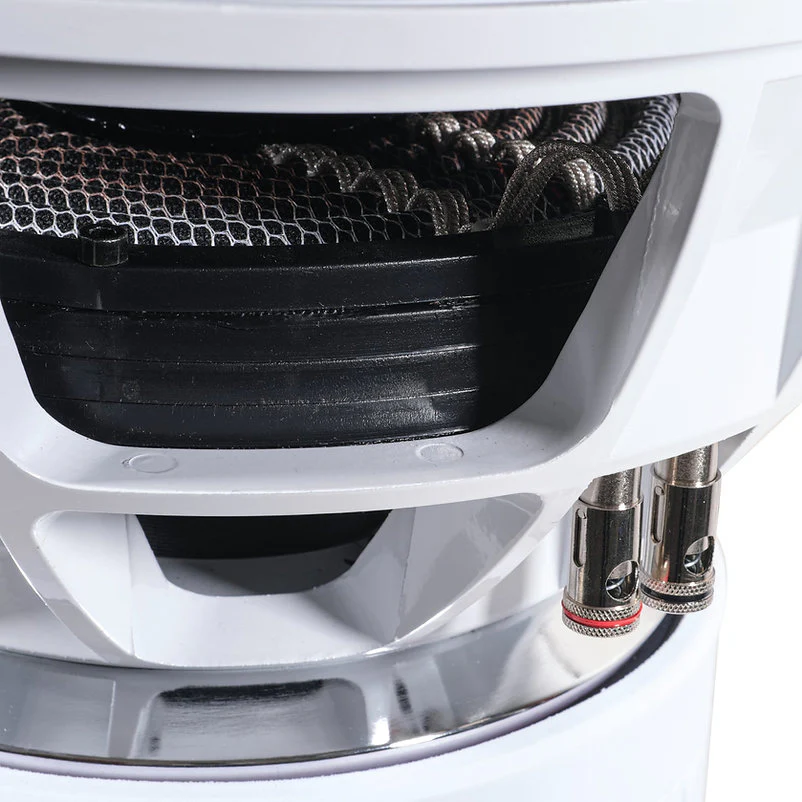

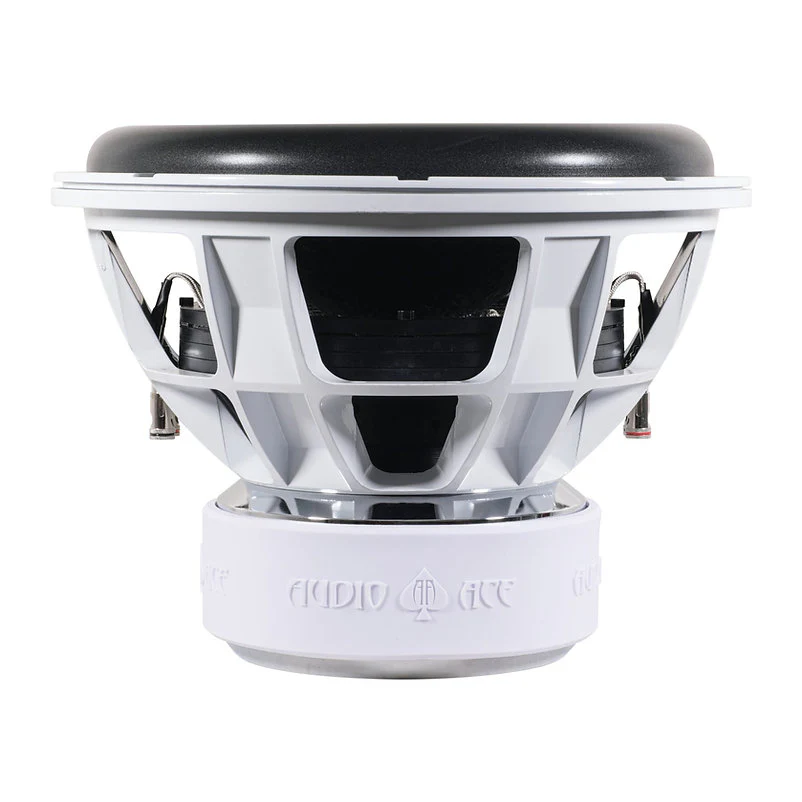

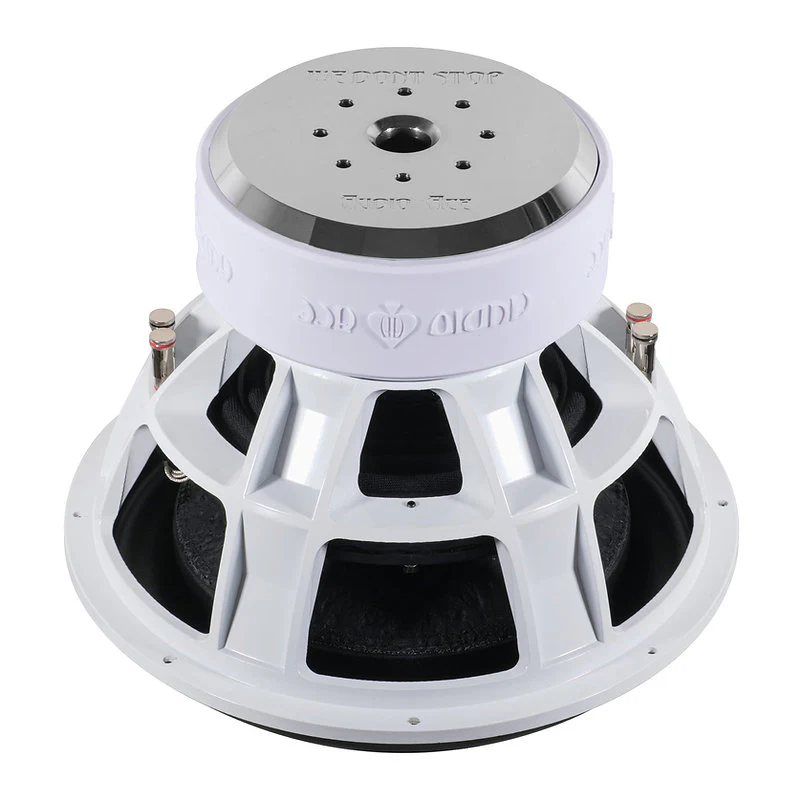

AUDIO ACE JESTER 15" DUAL 2 OHM SUBWOOFER
Product Overview: Audio Ace’s Powerful and Versatile 15-Inch Driver
The Audio Ace Jester 15" D2 is designed to achieve a high level of both Sound Quality (SQ) and Sound Pressure Level (SPL), rated at a formidable 3, 000W RMS. Its design includes a fairly low Free Air Resonance (Fs) and a powerful 300 oz motor structure, making it highly versatile for great sound across a wide range of music. Whether you're aiming for extreme sound levels or just wanting to enjoy powerful bass in your daily driver, the Jester is an excellent choice. It features a heavy-duty die-cast aluminum basket, a 3-inch BACCAW 4-layer voice coil, and a 4-layer 10-inch spider suspension. The Dual 2 Ohm impedance provides a flexible path to a 1 Ohm or 4 Ohm final load.
| AUDIO ACE JESTER 15" DUAL 2 OHM SPECIFICATIONS | |
|---|---|
| Model | Jester 15" |
| RMS Power Handling | 3,000 Watts |
| Voice Coil | 3" BACCAW 4 Layer Coil |
| Magnet Structure | 300 oz |
| Suspension | 4 Layer 10" Spider |
| Basket | Heavy Duty Die Cast Aluminum |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Cutout Diameter | 14.331 in |
| Mounting Depth | 10.07 in |
| LOSS FACTORS & MISC PARAMETERS | |
| Total Q (Qts) | 0.464 |
| Mechanical Q (Qms) | 5.368 |
| Electrical Q (Qes) | 0.508 |
| Free Air Resonance (Fs) | 33.7 Hz |
| Sensitivity (Lm) | 86.10 dB |
| Equivalent Volume (Vas) | 33.8589 L |
| Moving Mass (Mms) | 551.552 g |
| BL Factor (Bl) | 28.449 |
| DC Resistance (Re) | 3.52 Ohms |
| Effective Piston Area (Sd) | 769.45 |
Original: $579.00
-65%$579.00
$202.65
Description
Product Overview: Audio Ace’s Powerful and Versatile 15-Inch Driver
The Audio Ace Jester 15" D2 is designed to achieve a high level of both Sound Quality (SQ) and Sound Pressure Level (SPL), rated at a formidable 3, 000W RMS. Its design includes a fairly low Free Air Resonance (Fs) and a powerful 300 oz motor structure, making it highly versatile for great sound across a wide range of music. Whether you're aiming for extreme sound levels or just wanting to enjoy powerful bass in your daily driver, the Jester is an excellent choice. It features a heavy-duty die-cast aluminum basket, a 3-inch BACCAW 4-layer voice coil, and a 4-layer 10-inch spider suspension. The Dual 2 Ohm impedance provides a flexible path to a 1 Ohm or 4 Ohm final load.
| AUDIO ACE JESTER 15" DUAL 2 OHM SPECIFICATIONS | |
|---|---|
| Model | Jester 15" |
| RMS Power Handling | 3,000 Watts |
| Voice Coil | 3" BACCAW 4 Layer Coil |
| Magnet Structure | 300 oz |
| Suspension | 4 Layer 10" Spider |
| Basket | Heavy Duty Die Cast Aluminum |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Cutout Diameter | 14.331 in |
| Mounting Depth | 10.07 in |
| LOSS FACTORS & MISC PARAMETERS | |
| Total Q (Qts) | 0.464 |
| Mechanical Q (Qms) | 5.368 |
| Electrical Q (Qes) | 0.508 |
| Free Air Resonance (Fs) | 33.7 Hz |
| Sensitivity (Lm) | 86.10 dB |
| Equivalent Volume (Vas) | 33.8589 L |
| Moving Mass (Mms) | 551.552 g |
| BL Factor (Bl) | 28.449 |
| DC Resistance (Re) | 3.52 Ohms |
| Effective Piston Area (Sd) | 769.45 |
