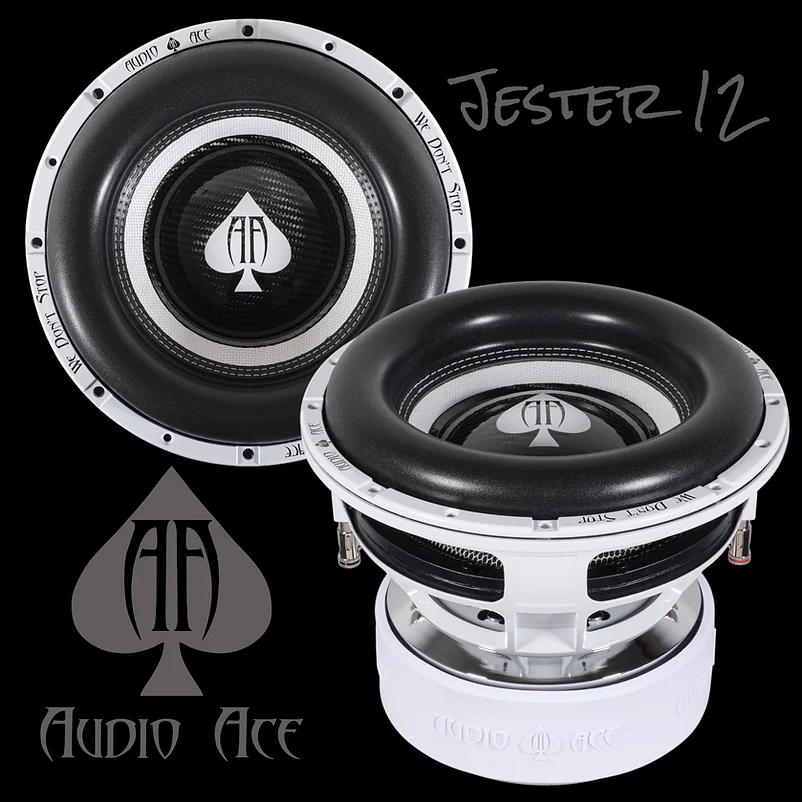

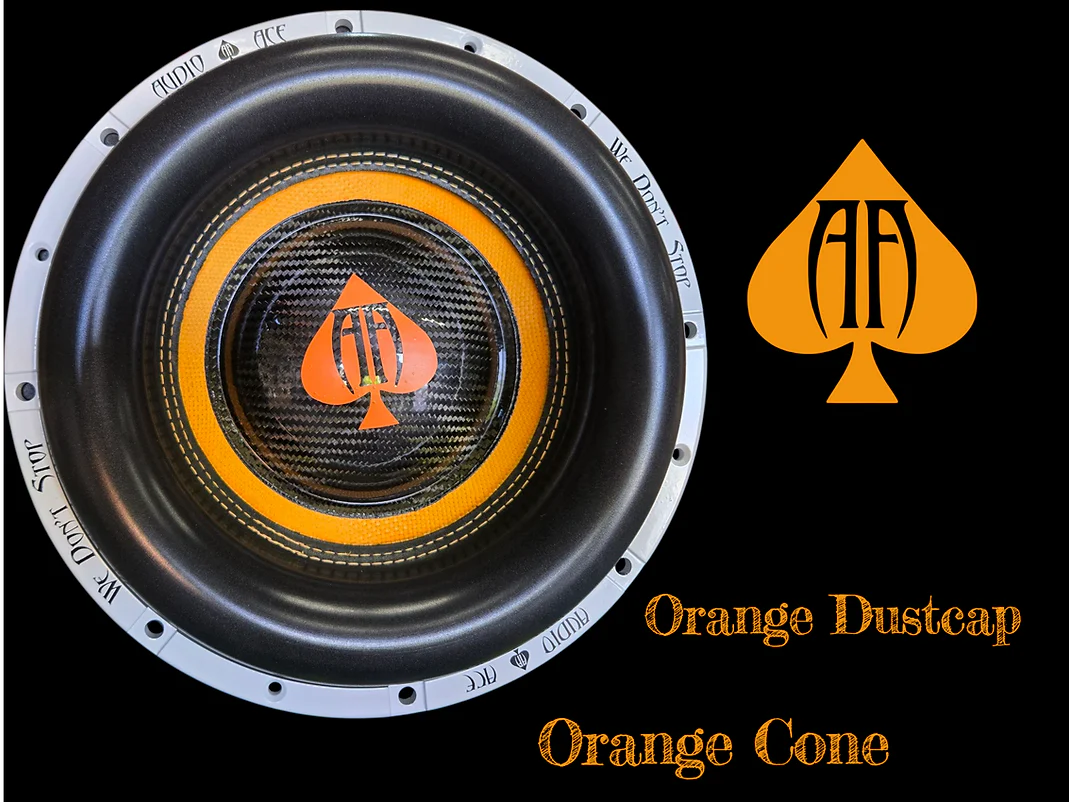

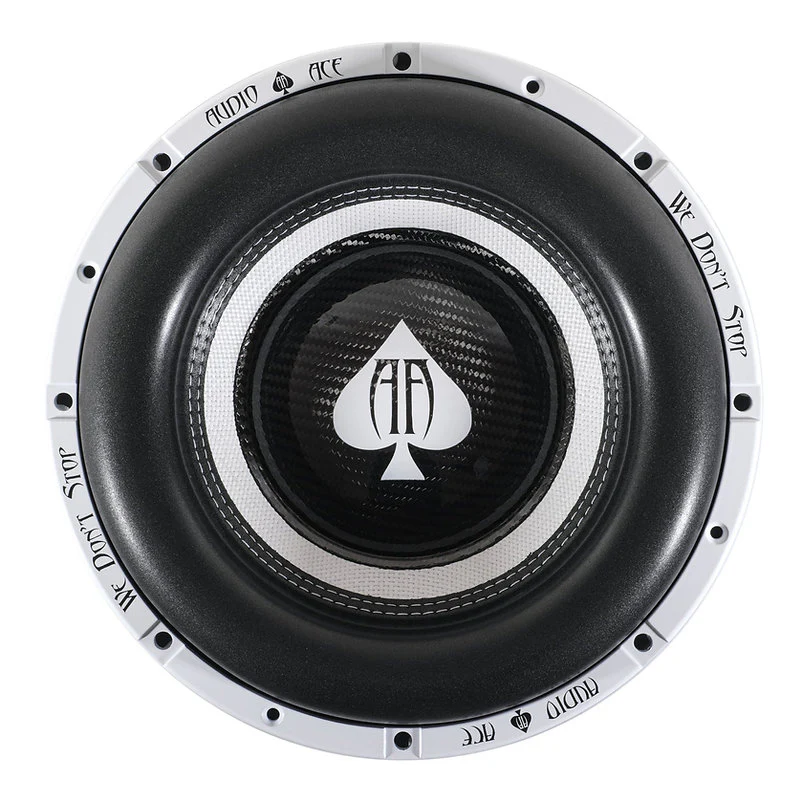

AUDIO ACE JESTER 12" DUAL 2 OHM SUBWOOFER
Product Overview: Audio Ace’s Powerful and Versatile 12-Inch Driver

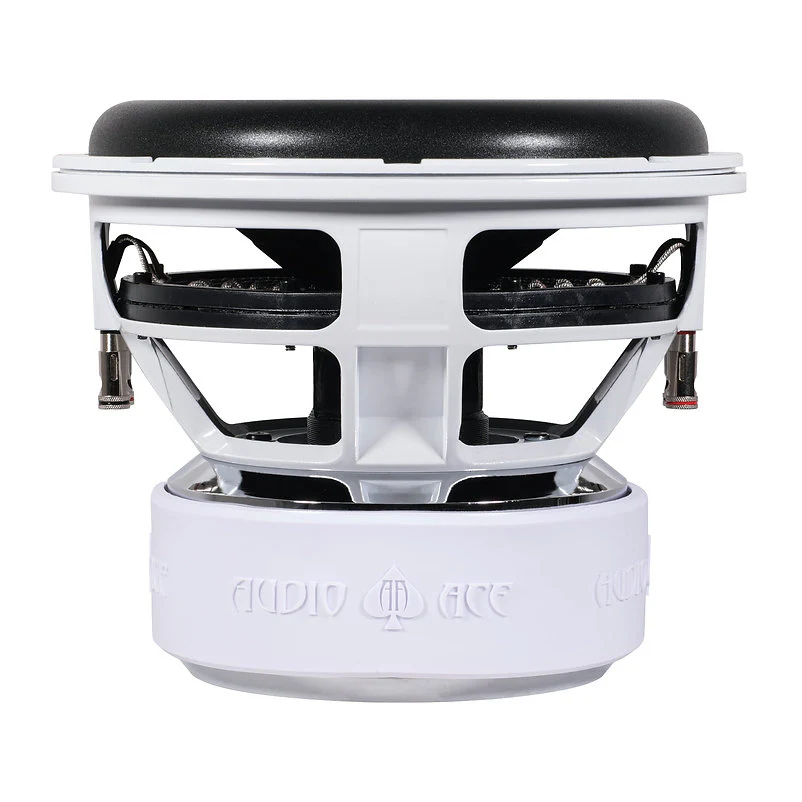

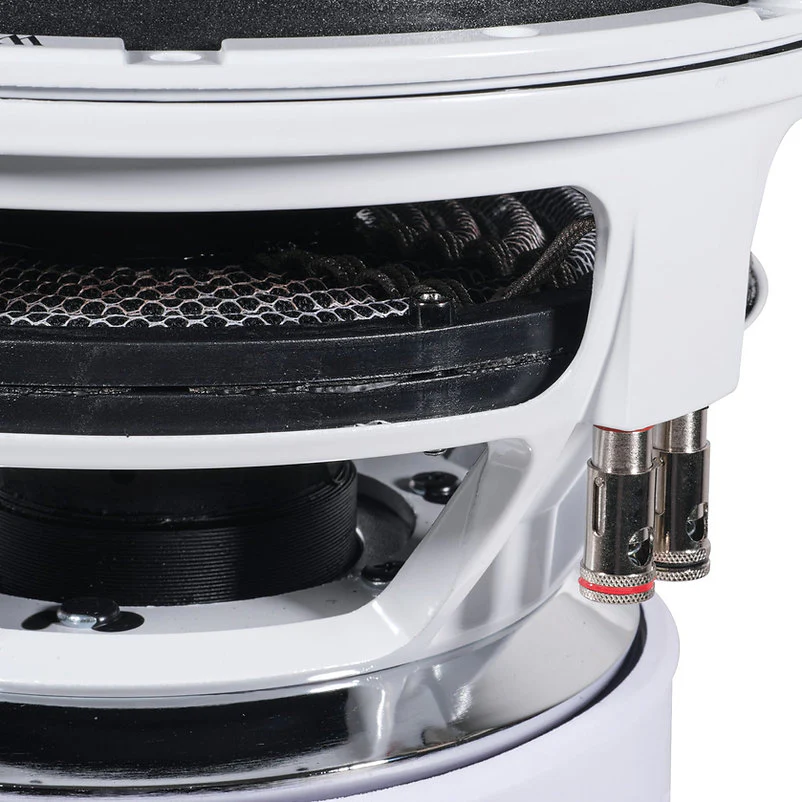

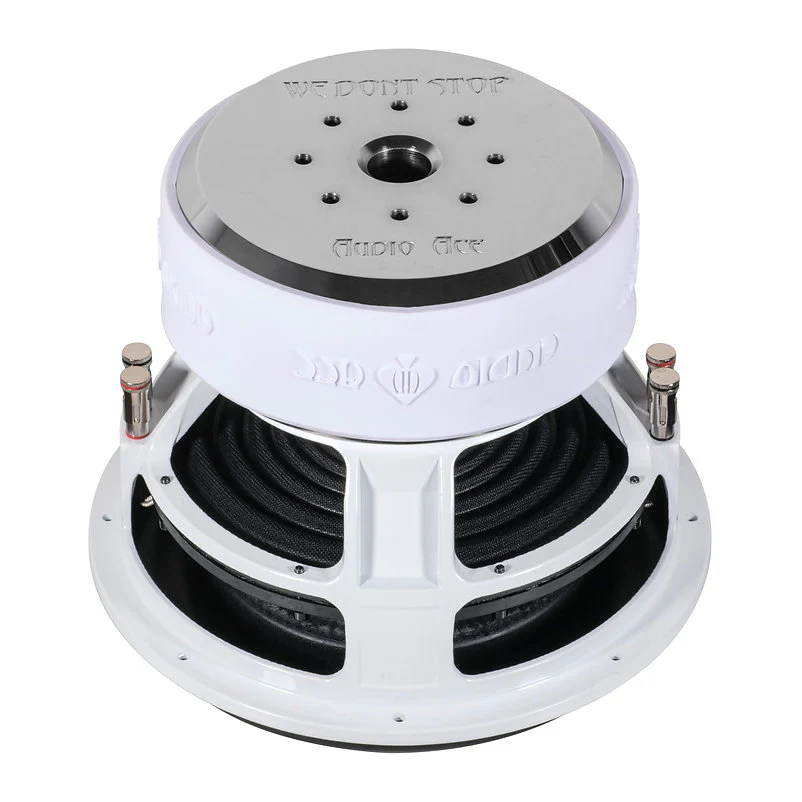

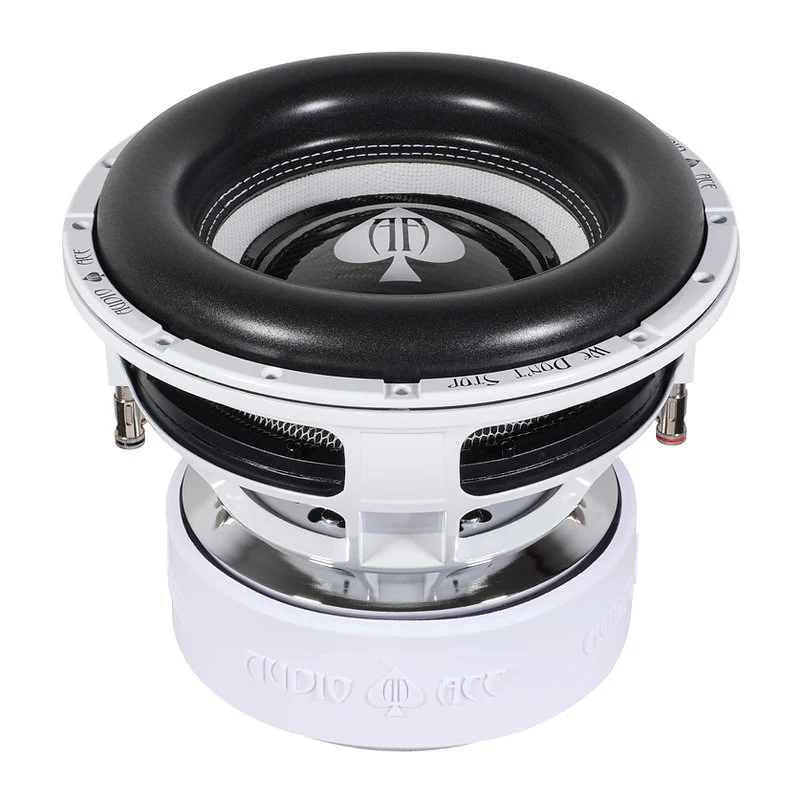

The Audio Ace Jester 12" D2 is designed to achieve a high level of both Sound Quality (SQ) and Sound Pressure Level (SPL). Conservatively rated at a robust 3, 000W RMS, the Jester is built with a low Free Air Resonance (Fs) and a strong 300 Oz magnet structure, allowing it to be versatile and sound great across a wide range of music. Featuring a heavy-duty die-cast aluminum basket, a 3-inch BACCAW 4-layer voice coil, and a 4-layer 10-inch spider suspension, this 12-inch driver is a perfect choice for achieving EXTREME sound levels in your daily driver. The Dual 2 Ohm coil provides a flexible path to a 1 Ohm or 4 Ohm final load.
| AUDIO ACE JESTER 12" DUAL 2 OHM SPECIFICATIONS | |
|---|---|
| Model | Jester 12" High Performance Subwoofer |
| RMS Power Handling (Conservative) | 3,000 Watts |
| Voice Coil | 3" BACCAW 4 Layer Voice Coil |
| Magnet Structure | 300 Oz |
| Suspension | 4 Layer 10" Spider |
| Basket | Heavy Duty Die Cast Aluminum |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Cutout Diameter | 11.25 inches |
| Mounting Depth | 8.5 inches |
| Total Weight | 47.6 Lbs |
| LOSS FACTORS & MISC PARAMETERS | |
| Total Q (Qts) | 0.386 |
| Mechanical Q (Qms) | 4.787 |
| Electrical Q (Qes) | 0.420 |
| Free Air Resonance (Fs) | 35.4 Hz |
| Sensitivity (Lm) | 83.37 dB |
| Equivalent Volume (Vas) | 12.8560 L |
| Moving Mass (Mms) | 454.545 g |
| BL Factor (Bl) | 29.466 |
| DC Resistance (Re) | 3.60 Ohms |
| Effective Piston Area (Sd) | 452.39 |
Original: $549.00
-65%$549.00
$192.15
Description
Product Overview: Audio Ace’s Powerful and Versatile 12-Inch Driver
The Audio Ace Jester 12" D2 is designed to achieve a high level of both Sound Quality (SQ) and Sound Pressure Level (SPL). Conservatively rated at a robust 3, 000W RMS, the Jester is built with a low Free Air Resonance (Fs) and a strong 300 Oz magnet structure, allowing it to be versatile and sound great across a wide range of music. Featuring a heavy-duty die-cast aluminum basket, a 3-inch BACCAW 4-layer voice coil, and a 4-layer 10-inch spider suspension, this 12-inch driver is a perfect choice for achieving EXTREME sound levels in your daily driver. The Dual 2 Ohm coil provides a flexible path to a 1 Ohm or 4 Ohm final load.
| AUDIO ACE JESTER 12" DUAL 2 OHM SPECIFICATIONS | |
|---|---|
| Model | Jester 12" High Performance Subwoofer |
| RMS Power Handling (Conservative) | 3,000 Watts |
| Voice Coil | 3" BACCAW 4 Layer Voice Coil |
| Magnet Structure | 300 Oz |
| Suspension | 4 Layer 10" Spider |
| Basket | Heavy Duty Die Cast Aluminum |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Cutout Diameter | 11.25 inches |
| Mounting Depth | 8.5 inches |
| Total Weight | 47.6 Lbs |
| LOSS FACTORS & MISC PARAMETERS | |
| Total Q (Qts) | 0.386 |
| Mechanical Q (Qms) | 4.787 |
| Electrical Q (Qes) | 0.420 |
| Free Air Resonance (Fs) | 35.4 Hz |
| Sensitivity (Lm) | 83.37 dB |
| Equivalent Volume (Vas) | 12.8560 L |
| Moving Mass (Mms) | 454.545 g |
| BL Factor (Bl) | 29.466 |
| DC Resistance (Re) | 3.60 Ohms |
| Effective Piston Area (Sd) | 452.39 |
